AON6918

Teknik Özellikler

Vgsth Max Id

2.3V @ 250μA

Ambalaj

Tape & Reel (TR)

RoHS Durumu

RoHS Compliant

Fet Feature

Logic Level Gate

Rds On Max Id Vgs

5.2m Ω @ 20A, 10V

Çalışma Sıcaklığı

-55°C~150°C TJ

Drain To Source Voltage Vdss

25V

Kılıf / Paket

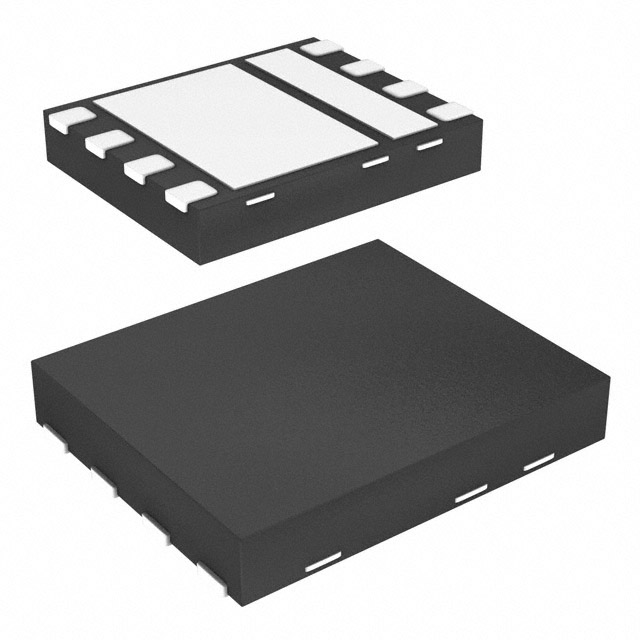

8-WDFN Exposed Pad

Gate Charge Qg Max Vgs

21nC @ 10V

Fet Type

2 N-Channel (Half Bridge)

Current Continuous Drain Id25

15A 26.5A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Input Capacitance Ciss Max Vds

1560pF @ 15V

Continuous Drain Current Id

26.5A

Max Power Dissipation

2.2W

Power Max

2W 2.2W

Montaj

Surface Mount

Yayın Yılı

2010

Parça Durumu

Obsolete

Montaj Tipi

Surface Mount
