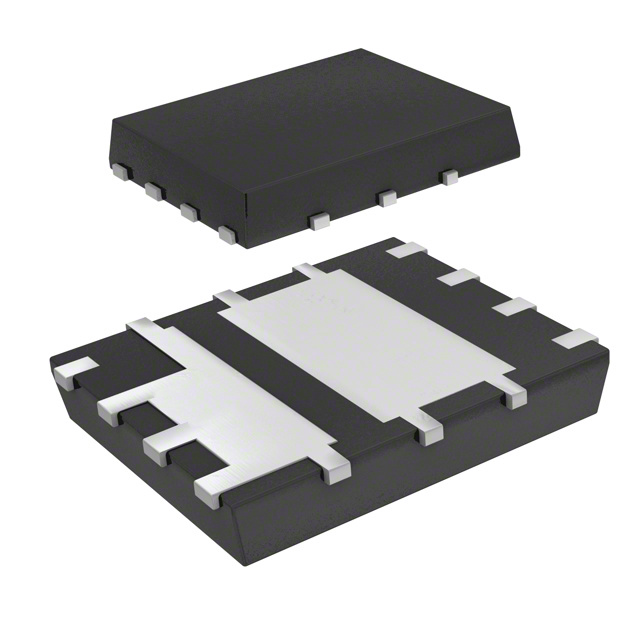

AON6906A

Teknik Özellikler

Montaj

Surface Mount

Power Max

1.9W 2W

Yayın Yılı

2010

Parça Durumu

Active

Montaj Tipi

Surface Mount

Current Continuous Drain Id25

9.1A 10A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Input Capacitance Ciss Max Vds

670pF @ 15V

Continuous Drain Current Id

10A

Max Power Dissipation

2W

Rds On Max Id Vgs

14.4m Ω @ 9.1A, 10V

Fet Feature

Logic Level Gate

Drain To Source Voltage Vdss

30V

Çalışma Sıcaklığı

-55°C~150°C TJ

Kılıf / Paket

8-PowerVDFN

Fet Technology

METAL-OXIDE SEMICONDUCTOR

Fet Type

2 N-Channel (Half Bridge)

Gate Charge Qg Max Vgs

9nC @ 10V

Vgsth Max Id

2.4V @ 250μA

Pin Sayısı

8

Ambalaj

Tape & Reel (TR)

Operating Mode

ENHANCEMENT MODE

Fabrika Tedarik Süresi

18 Weeks

RoHS Durumu

ROHS3 Compliant
