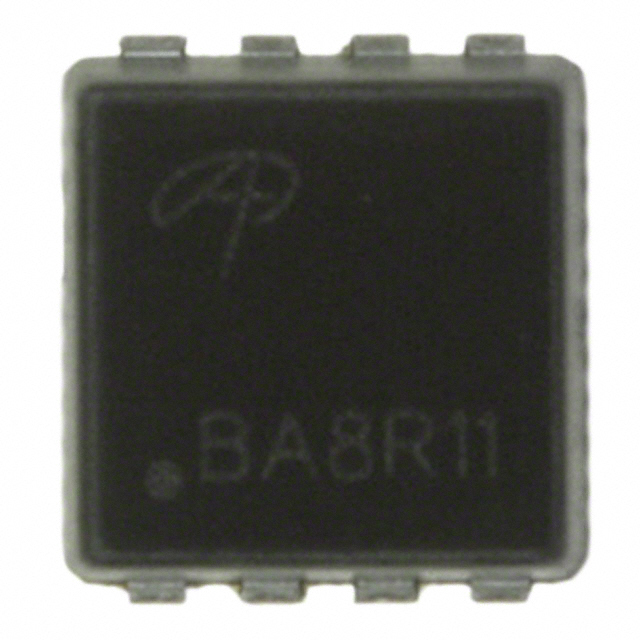

AON6284

Teknik Özellikler

RoHS

Compliant

Min. Çalışma Sıcaklığı

-55 °C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Casepackage

DFN

Parça Durumu

Active

Drive Voltage Max Rds On Min Rds On

6V 10V

Maks. Çalışma Sıcaklığı

150 °C

Lifecycle Status

Production (Last Updated: 4 years ago)

Montaj

Surface Mount

Ambalaj

Tape & Reel (TR)

Vgsth Max Id

3.3V @ 250μA

Gate Charge Qg Max Vgs

40nC @ 10V

Input Capacitance

2.162 nF

Rds On Max

7.1 mΩ

Kılıf / Paket

8-PowerSMD, Flat Leads

Schedule B

8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080

Max Power Dissipation

7.4 W

Input Capacitance Ciss Max Vds

2162pF @ 40V

Continuous Drain Current Id

78 A

Power Dissipation Max

7.4W Ta 78W Tc

Current Continuous Drain Id25

24A Ta 78A Tc

Montaj Tipi

Surface Mount

Yayın Yılı

2011

Vgs Max

±20V

Configuration

Single

RoHS Durumu

ROHS3 Compliant

Operating Mode

ENHANCEMENT MODE

Fabrika Tedarik Süresi

18 Weeks

Fet Type

N-Channel

Drain To Source Voltage Vdss

80 V

Çalışma Sıcaklığı

-55°C~150°C TJ

Rds On Max Id Vgs

7.1m Ω @ 20A, 10V
