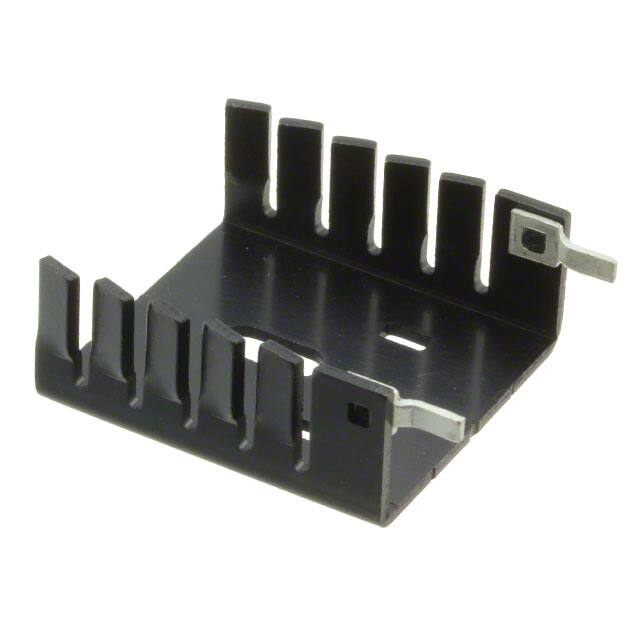

ATS-PCB1034

Teknik Özellikler

Thermal Resistance Natural

13.00°C/W

Package Cooled

TO-220

Tip

Board Level, Vertical

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Bolt, PC Pin

Yayın Yılı

2014

RoHS Durumu

ROHS3 Compliant

Shape

Rectangular, Angled Fins

Height Off Base Height Of Fin

0.500 12.70mm

Uzunluk

1.189 30.20mm

Kılıf / Paket

TO-220

Material Finish

Black Anodized

Genişlik

1.181 30.00mm

Material

Aluminum

Attachment Method

Bolt On and PC Pin

Parça Durumu

Active

Thermal Resistance Forced Air Flow

8.90°C/W @ 200 LFM

Fabrika Tedarik Süresi

6 Weeks
