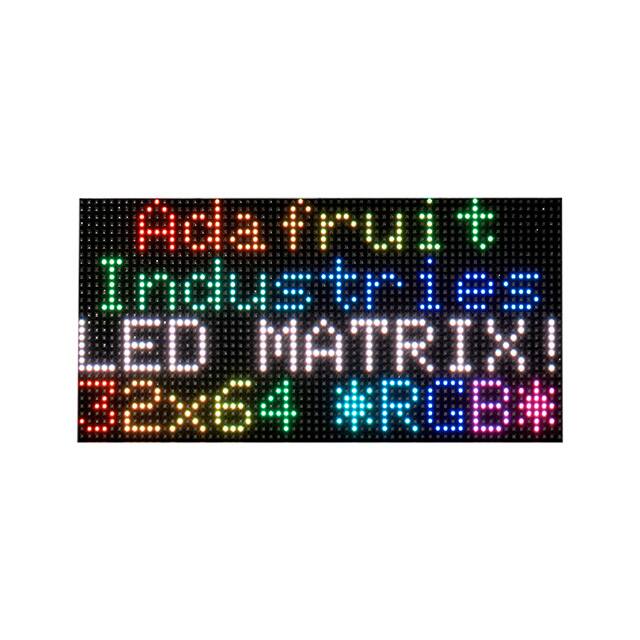

2278

Teknik Özellikler

Boyut / Ölçü

10.00Lx5.00W x 0.60 H 254mmx127mmx15.24mm

Fabrika Tedarik Süresi

2 Weeks

ECCN Kodu

EAR99

Renk

Red, Green, Blue (RGB)

Length Termination

0.216 inch

Montaj Tipi

BOARD

Pcb Contact Row Spacing

2.54 mm

Parça Durumu

Active

Termination Type

SOLDER

Body Breadth

0.197 inch

Montaj Stili

STRAIGHT

Body Length Or Diameter

3.92 inch

Body Depth

0.531 inch

Total Number Of Contacts

78

Configuration

64 x 32

Pcb Contact Pattern

RECTANGULAR

Connector Type

BOARD CONNECTOR

Contact Gender

FEMALE

Number Of Conductors

ONE

Contact Finish Termination

Tin (Sn)

RoHS Durumu

ROHS3 Compliant

Contact Resistance

20mOhm

Contact Style

SQ PIN-SKT

JESD-609 Kodu

e3

Contact Finish Mating

SN ON CU

Operating Temperature Min

-40°C

Operating Temperature Max

105°C

Additional Feature

ROHS COMPLIANT

Sıra Sayısı

2

Mating Contact Pitch

0.1 inch

Mating Contact Row Spacing

0.1 inch

Dielectric Withstanding Voltage

1000VAC V

Reliability

COMMERCIAL

Insulation Materials

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Rated Current Signal

3A

Insulation Resistance

5000000000Ohm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL, CSA

Contact Materials

BRASS

Terminal Adımı

2.54mm
