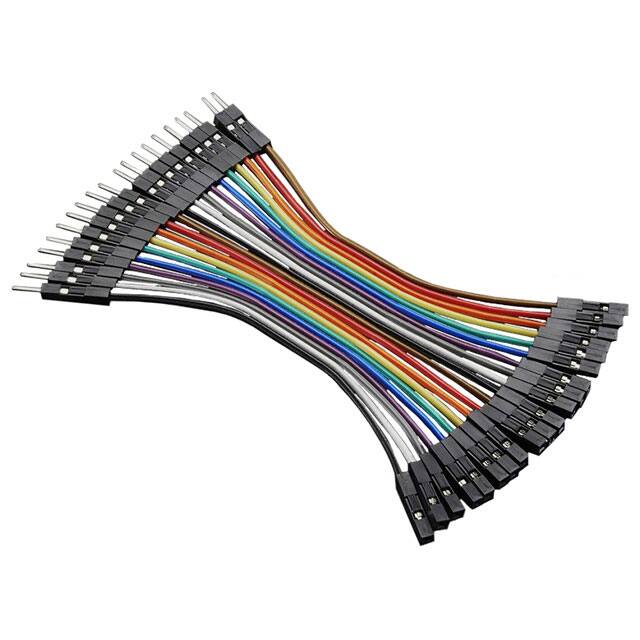

1953

Teknik Özellikler

Pcb Contact Row Spacing

2.54 mm

Uzunluk

3.00 76.20mm

Operating Temperature Max

105°C

Mating Contact Row Spacing

0.1 inch

Total Number Of Contacts

20

ECCN Kodu

EAR99

Additional Feature

ROHS COMPLIANT

Termination Type

SOLDER

Contact Finish Termination

Gold (Au) - with Nickel (Ni) barrier

Reference Standard

UL, CSA

REACH Uyumluluk Kodu

compliant

Contact Pattern

RECTANGULAR

Wire Gauge

28 AWG

Body Breadth

0.197 inch

Number Of Conductors

ONE

Operating Temperature Min

-55°C

Nem Hassasiyeti (MSL)

Not Applicable

Contact Finish Mating

AU ON NI

Style

Male to Female

Insulation Resistance

5000000000Ohm

Mating Contact Pitch

0.1 inch

HTS Kodu

8536.69.40.40

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

2 Weeks

Contact Resistance

20mOhm

JESD-609 Kodu

e4

Renk

Various

Number Of Pcb Rows

2

Connector Type

BOARD CONNECTOR

Insulation Materials

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Terminal Adımı

2.54mm

Sıra Sayısı

2

Reliability

COMMERCIAL

Dielectric Withstanding Voltage

1000VAC V

Plating Thickness

FLASH inch

Durability

1000 Cycles

Body Depth

0.059 inch

Montaj Tipi

BOARD

Contact Materials

BRASS
