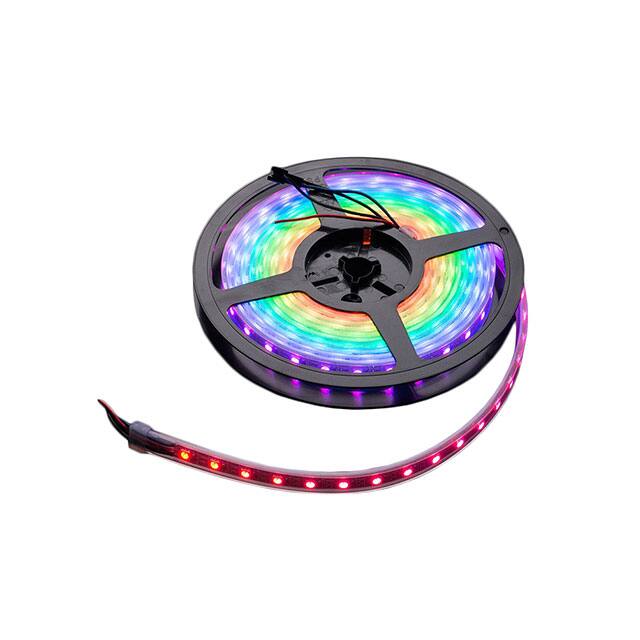

1461

Teknik Özellikler

Parça Durumu

Active

Total Number Of Contacts

1

Montaj Tipi

User Defined

Contact Materials

BRASS

Renk

Red, Green, Blue (RGB)

Reliability

COMMERCIAL

Body Length Or Diameter

0.1 inch

Mating Contact Pitch

0.1 inch

Number Of Conductors

ONE

Yükseklik

25.4mm

Sıra Sayısı

1

Insulation Resistance

5000000000Ohm

Interface

Serial (Shift Register)

Termination Type

SOLDER

Configuration

Strip (Black)

JESD-609 Kodu

e4

Insulation Materials

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Body Breadth

0.098 inch

Seri

Neopixel

REACH Uyumluluk Kodu

compliant

Body Depth

0.972 inch

Contact Style

SQ PIN-SKT

Plating Thickness

FLASH inch

Contact Resistance

20mOhm

Weight

340.194277g

Contact Finish Termination

Gold (Au) - with Nickel (Ni) barrier

Pcb Contact Pattern

RECTANGULAR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Utilized Led

SK6812 or WS2812

Contact Pattern

RECTANGULAR

Connector Type

BOARD CONNECTOR

Operating Temperature Max

105°C

Rated Current Signal

3A

Dielectric Withstanding Voltage

500VAC V

ECCN Kodu

EAR99

Reference Standard

UL

Number Of Leds

240

Operating Temperature Min

-55°C

Contact Gender

MALE

Boyut / Ölçü

4000.00mm L
