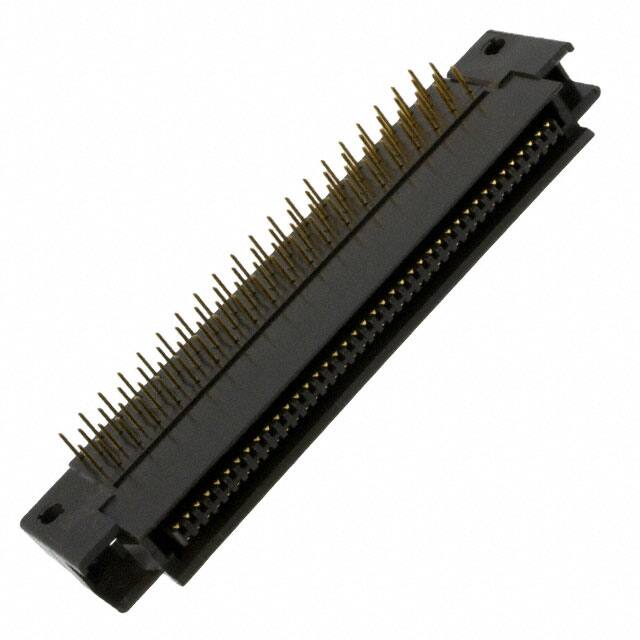

P50E-080P1-SR1-EA

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~85°C

Fastening Type

Latch Holder

Sıra Sayısı

2

Current Rating Amps

0.5A

Pitch Mating

0.050 1.27mm

Parça Durumu

Active

Housing Material

Nylon

Terminal

Solder

Depth

17.4mm

Connector Type

Plug

Contact Materials

Copper Alloy

Pozisyon Sayısı

80

Contact Type

Center Strip Contact

Lead Length

3mm

Number Of Positions Loaded

All

Montaj Tipi

Through Hole, Right Angle

Flammability Rating

UL94 V-0

Insulation Height

0.276 7.00mm

Seri

Pak 50, P50E

Contact Finish Thickness Mating

10.0μin 0.25μm

Insulation Color

Black

Fabrika Tedarik Süresi

9 Weeks

Reach Svhc

No SVHC

Max Current Rating

500mA

Contact Length Post

0.118 3.00mm

Ambalaj

Bulk

Uzunluk

65.93mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Orientation

Right Angle

Akım Değeri

500mA

RoHS Durumu

RoHS Compliant

Yayın Yılı

2006

Montaj

Through Hole

Contact Gender

Male

Contact Finish Mating

Gold

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

Shrouding

Shrouded - 4 Wall

Contact Finish Thickness Post

Flash
