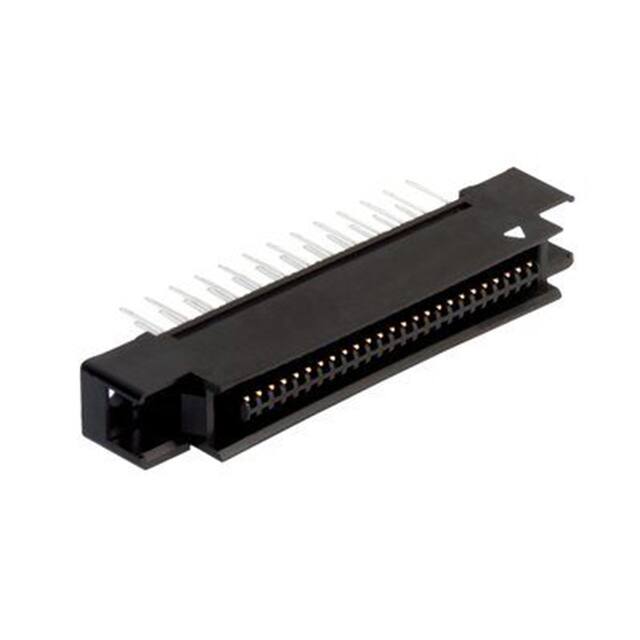

P50E-080P1-RR1-EA

Teknik Özellikler

Pozisyon Sayısı

80

Connector Type

Plug

Contact Materials

Copper Alloy

Housing Material

Nylon

Terminal

Solder

Pitch Mating

0.050 1.27mm

Parça Durumu

Active

Min. Çalışma Sıcaklığı

-55°C

Renk

Black

Özellikler

Retention Clips

Current Rating Amps

0.5A

Çalışma Sıcaklığı

-55°C~85°C

Fastening Type

Latch Holder

Sıra Sayısı

2

Insulation Height

0.276 7.00mm

Pitch

1.27mm

Montaj Tipi

Through Hole, Right Angle

Flammability Rating

UL94 V-0

Lead Length

3mm

Number Of Positions Loaded

All

Contact Type

Center Strip Contact

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Contact Plating

Gold

Ambalaj

Bulk

Maks. Çalışma Sıcaklığı

85°C

Contact Finish Post

Gold

Contact Length Post

0.118 3.00mm

Fabrika Tedarik Süresi

9 Weeks

Insulation Color

Black

Seri

Pak 50, P50E

Contact Finish Thickness Mating

10.0μin 0.25μm

Contact Finish Thickness Post

Flash

Shrouding

Shrouded - 4 Wall

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

Gender

Male

Contact Gender

Male

Contact Finish Mating

Gold

Yayın Yılı

2007
