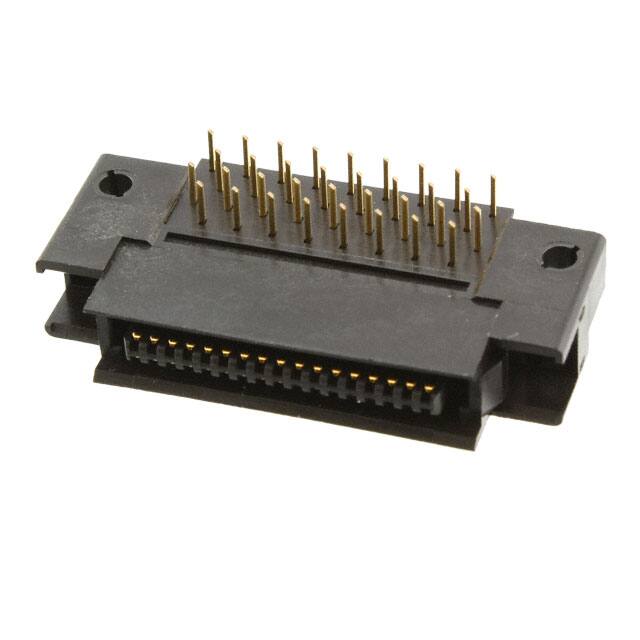

P50E-034P1-SR1-EA

Teknik Özellikler

Orientation

Right Angle

Yayın Yılı

2007

Montaj

Through Hole

Akım Değeri

500mA

RoHS Durumu

RoHS Compliant

Nominal Gerilim

650V

Material Flammability Rating

UL94 V-0

Style

Board to Board or Cable

Gender

Male

Contact Finish Mating

Gold

Contact Gender

Male

Row Spacing

1.27 mm

Contact Finish Thickness Post

Flash

Shrouding

Shrouded - 4 Wall

Insulation Color

Black

Seri

Pak 50, P50E

Contact Finish Thickness Mating

10.0μin 0.25μm

Contact Length Post

0.118 3.00mm

Max Current Rating

500mA

Fabrika Tedarik Süresi

9 Weeks

Maks. Çalışma Sıcaklığı

85°C

Ambalaj

Bulk

Contact Finish Post

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Uzunluk

36.72mm

Contact Plating

Gold

Contact Type

Center Strip Contact

Number Of Contacts

34

Montaj Tipi

Through Hole, Right Angle

Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Pitch

2.54mm

Insulation Height

0.276 7.00mm

Çalışma Sıcaklığı

-55°C~85°C

Fastening Type

Latch Holder

Sıra Sayısı

2

Parça Durumu

Active

Pitch Mating

0.050 1.27mm

Renk

Black
