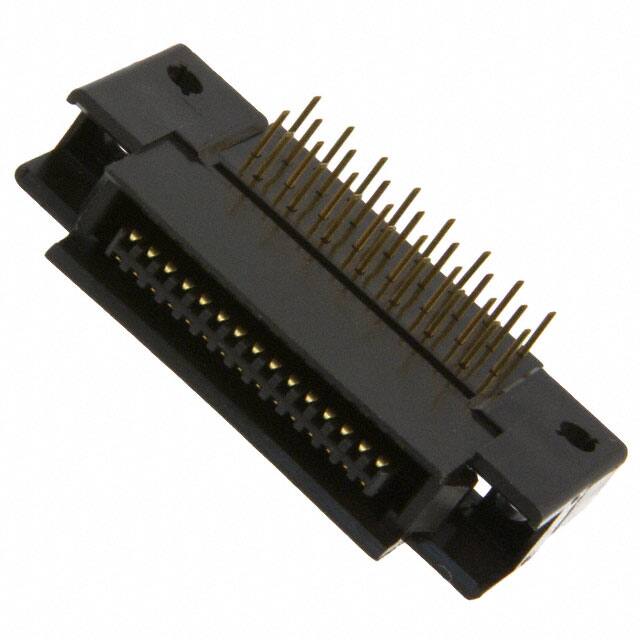

P50E-030P1-SR1-EA

Teknik Özellikler

Yayın Yılı

2007

Montaj

Through Hole

Akım Değeri

500mA

RoHS Durumu

RoHS Compliant

Contact Finish Thickness Post

Flash

Shrouding

Shrouded - 4 Wall

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

Gender

Male

Contact Finish Mating

Gold

Contact Length Post

0.118 3.00mm

Fabrika Tedarik Süresi

9 Weeks

Insulation Color

Black

Seri

Pak 50, P50E

Contact Finish Thickness Mating

10.0μin 0.25μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Contact Plating

Gold

Maks. Çalışma Sıcaklığı

85°C

Ambalaj

Bulk

Contact Finish Post

Gold

Montaj Tipi

Through Hole, Right Angle

Number Of Contacts

30

Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Contact Type

Center Strip Contact

Insulation Height

0.276 7.00mm

Pitch

1.27mm

Parça Durumu

Active

Pitch Mating

0.050 1.27mm

Min. Çalışma Sıcaklığı

-55°C

Renk

Black

Current Rating Amps

0.5A

Çalışma Sıcaklığı

-55°C~85°C

Fastening Type

Latch Holder

Sıra Sayısı

2

Pozisyon Sayısı

30

Connector Type

Plug

Contact Materials

Copper Alloy

Housing Material

Nylon
