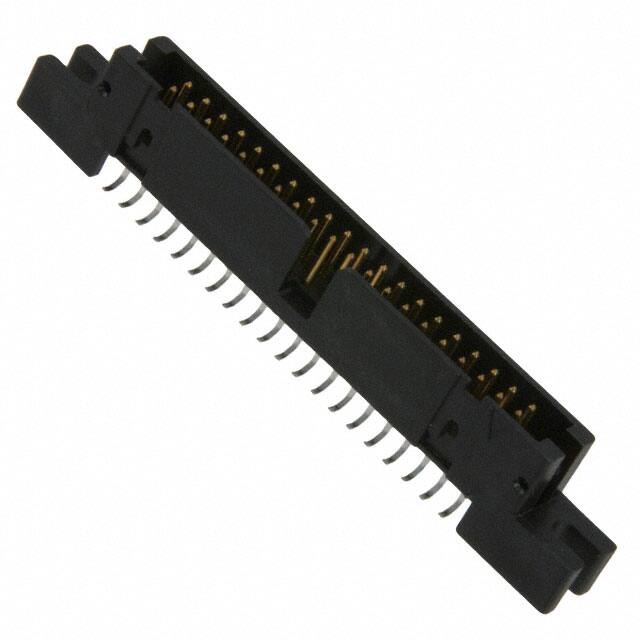

N4640-2000RB

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

30.0μin 0.76μm

Renk

Black

Özellikler

Keying Slot, Mounting Flange

Yayın Yılı

2009

RoHS Durumu

RoHS Compliant

Insulation Color

Black

Pitch Mating

0.100 2.54mm

Contact Lengthmating

0.243 6.17mm

Pitch

2.54mm

Contact Type

Male Pin

Number Of Contacts

40

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Parça Durumu

Last Time Buy

Contact Shape

Square

Ambalaj

Bulk

Terminal

Solder

Contact Finish Post

Tin

Gender

Male

Fastening Type

Push-Pull

Orientation

Straight

Çalışma Sıcaklığı

-55°C~105°C

Shrouding

Shrouded - 4 Wall

Flammability Rating

UL94 V-0

Montaj

Surface Mount

Pozisyon Sayısı

40

Contact Finish Mating

Gold

Contact Finish Thickness Post

300.0μin 7.62μm

Number Of Positions Loaded

All

Onay Kuruluşu

UL

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Materials

Copper Alloy

Style

Board to Cable/Wire

Connector Type

Header

Contact Plating

Gold

Montaj Tipi

Surface Mount

Seri

N4600

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.525 13.34mm
