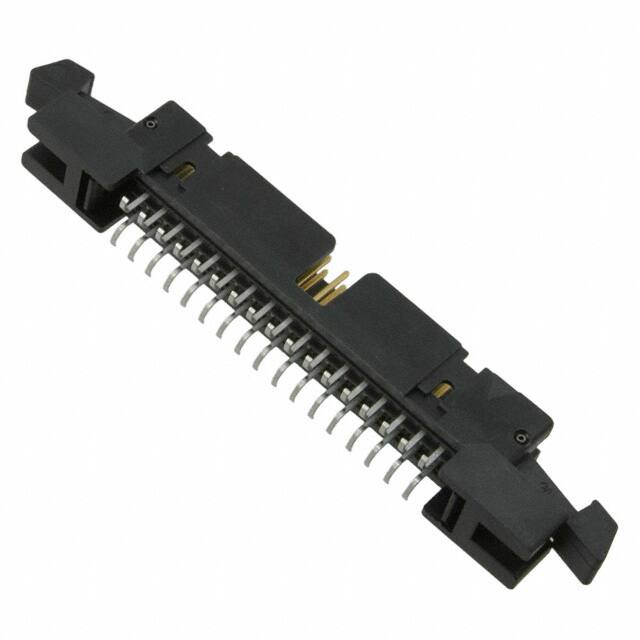

N4634-2200RB

Teknik Özellikler

Contact Lengthmating

0.243 6.17mm

Pitch

2.54mm

Parça Durumu

Last Time Buy

Contact Type

Male Pin

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

30.0μin 0.76μm

Renk

Black

Yayın Yılı

2009

Özellikler

Keying Slot, Mounting Flange

Insulation Color

Black

RoHS Durumu

RoHS Compliant

Contact Gender

Male

Pitch Mating

0.100 2.54mm

Connector Type

Header

Contact Plating

Gold

Montaj Tipi

Surface Mount

Row Spacing Mating

0.100 (2.54mm)

Seri

N4600

Insulation Height

0.525 13.34mm

Current Rating Amps

1.25A

Ambalaj

Bulk

Contact Finish Post

Tin

Gender

Male

Terminal

Solder

Çalışma Sıcaklığı

-55°C~105°C

Fastening Type

Latch Lock/Eject Hooks, Short

Shrouding

Shrouded - 4 Wall

Montaj

Surface Mount

Pozisyon Sayısı

34

Contact Finish Mating

Gold

Contact Finish Thickness Post

300.0μin 7.62μm

Contact Materials

Copper Alloy

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Positions Loaded

All

Style

Board to Cable/Wire
