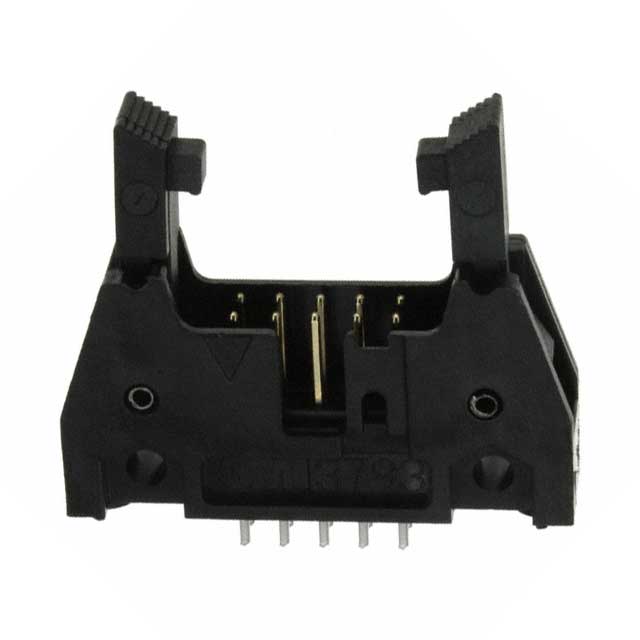

N3793-6302RB

Teknik Özellikler

Number Of Poles

10

Contact Resistance

20mOhm

Contact Finish Mating

Gold

Sıra Sayısı

2

Nominal Gerilim

1kV

Contact Finish Post

Tin

Voltage Rated Ac

350V

Pin Sayısı

10

Insulation Resistance

1GOhm

Hole Diameter

890 μm

Contact Materials

Copper Alloy

Seri

3000

Lead Length

2.84mm

Fabrika Tedarik Süresi

6 Weeks

Contact Gender

Male

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.240 6.10mm

Orientation

Straight

Insulation Color

Black

Housing Color

Black

Contact Length Post

0.112 2.84mm

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Contact Shape

Square

Current Rating Amps

1.75A

Gender

Male

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.680 17.27mm

Overall Contact Length

0.652 16.56mm

Depth

8.6mm

Montaj

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

200.0μin 5.08μm

Contact Plating

Gold

Number Of Contacts

10

Terminal

Solder

Number Of Positions Loaded

All

Max Current Rating

2A

Fastening Type

Latch Lock/Eject Hooks, Long

Ambalaj

Bulk
