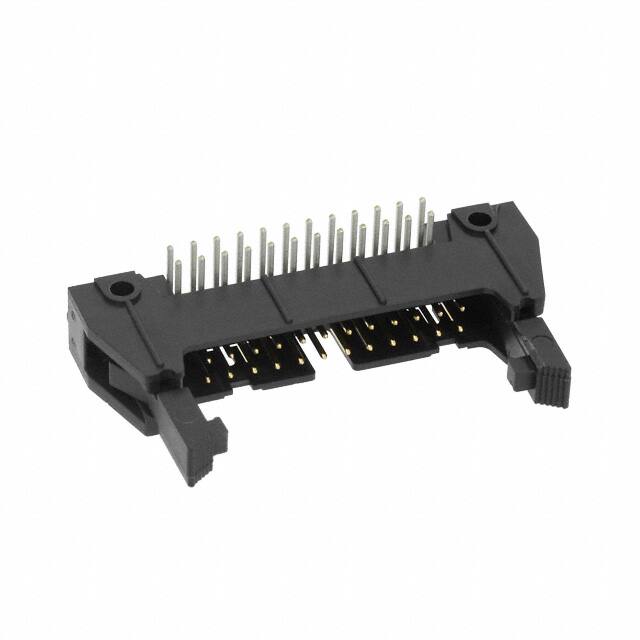

N3627-5302RB

Teknik Özellikler

Özellikler

Keying Slot, Mounting Flange

Parça Durumu

Active

Maks. Çalışma Sıcaklığı

105°C

Contact Finish Thickness Mating

30.0μin 0.76μm

RoHS Durumu

RoHS Compliant

Min. Çalışma Sıcaklığı

-55°C

Pozisyon Sayısı

24

Style

Board to Cable/Wire

Akım Değeri

1A

Connector Type

Header

Lead Pitch

2.54mm

Çalışma Sıcaklığı

-55°C~105°C

Renk

Black

Material Flammability Rating

UL94 V-0

Housing Material

Polyester

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Pitch

2.54mm

Uzunluk

49.91mm

Yayın Yılı

2009

Contact Type

Male Pin

Fastening Type

Latch Lock/Eject Hooks, Long

Max Current Rating

2A

Ambalaj

Bulk

Terminal

Solder

Number Of Contacts

24

Contact Plating

Gold

Number Of Positions Loaded

All

Insulation Height

0.340 8.64mm

Contact Finish Thickness Post

200.0μin 5.08μm

Row Spacing Mating

0.100 (2.54mm)

Montaj

Through Hole

Depth

27.2mm

Current Rating Amps

1.75A

Contact Shape

Square

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole, Right Angle

Contact Length Post

0.112 2.84mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Male

Contact Lengthmating

0.240 6.10mm
