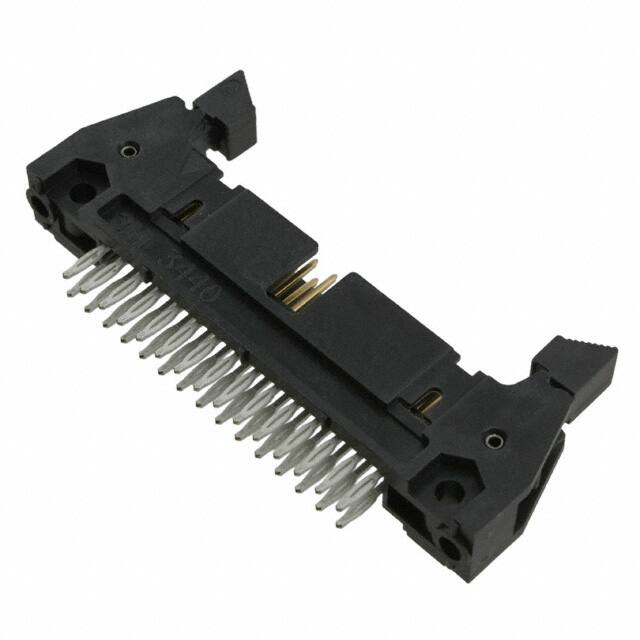

N3440-620T02RB

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~105°C

Fabrika Tedarik Süresi

6 Weeks

Connector Type

Header

Seri

3000

Style

Board to Cable/Wire

Insulation Color

Black

Pozisyon Sayısı

30

Housing Color

Black

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.240 6.10mm

Yükseklik

17.3mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Male

RoHS Durumu

RoHS Compliant

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm

Contact Length Post

0.175 4.45mm

Contact Finish Thickness Mating

30.0μin 0.76μm

Current Rating Amps

1.75A

Contact Shape

Square

Contact Finish Thickness Post

300.0μin 7.62μm

Montaj

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.680 17.27mm

Özellikler

Keying Slot, Mounting Flange

Overall Contact Length

0.715 18.16mm

Genişlik

8.3mm

Parça Durumu

Active

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Contact Plating

Gold

Terminal

Press-Fit, Solder

Contact Finish Post

Tin

Ambalaj

Bulk

Kurşunsuz

Lead Free

Sıra Sayısı

2

Fastening Type

Latch Lock/Eject Hooks, Short

Contact Type

Male Pin

Uzunluk

57.4mm

Yayın Yılı

2009
