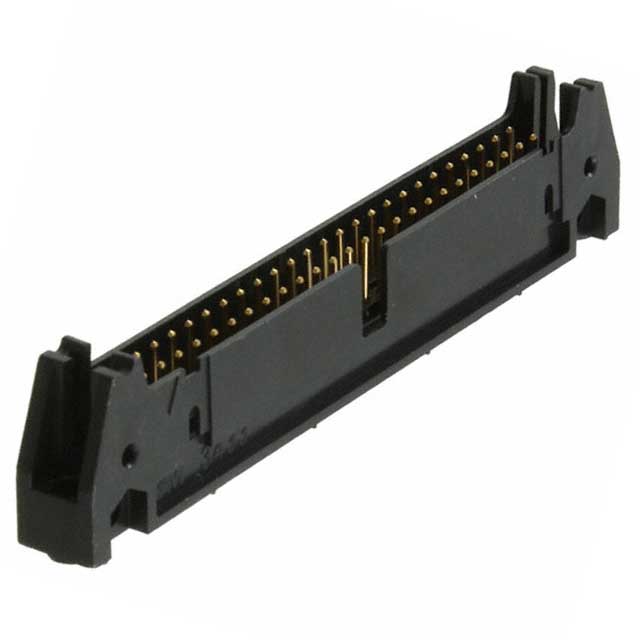

N3433-5002RB

Teknik Özellikler

Sıra Sayısı

2

Contact Finish Post

Tin

Nominal Gerilim

1kV

Contact Finish Mating

Gold

Insulation Resistance

1GOhm

Contact Materials

Copper Alloy

Contact Lengthmating

0.240 6.10mm

Shrouding

Shrouded - 4 Wall

Insulation Color

Black

Housing Color

Black

Orientation

Right Angle

Seri

3000

Contact Gender

Male

Lead Length

2.84mm

Fabrika Tedarik Süresi

6 Weeks

Insulation Height

0.340 8.64mm

Contact Finish Thickness Post

200.0μin 5.08μm

Montaj

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Depth

17.3mm

Current Rating Amps

1.75A

Contact Shape

Square

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole, Right Angle

Contact Length Post

0.112 2.84mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Male

Onay Kuruluşu

UL

Fastening Type

Push-Pull

Max Current Rating

2A

Kurşunsuz

Lead Free

Ambalaj

Bulk

Terminal

Solder

Number Of Contacts

50

Contact Plating

Gold

Number Of Positions Loaded

All

Renk

Beige

Material Flammability Rating

UL94 V-0

Flammability Rating

UL94 V-0

Mating Post Length

6.2mm
