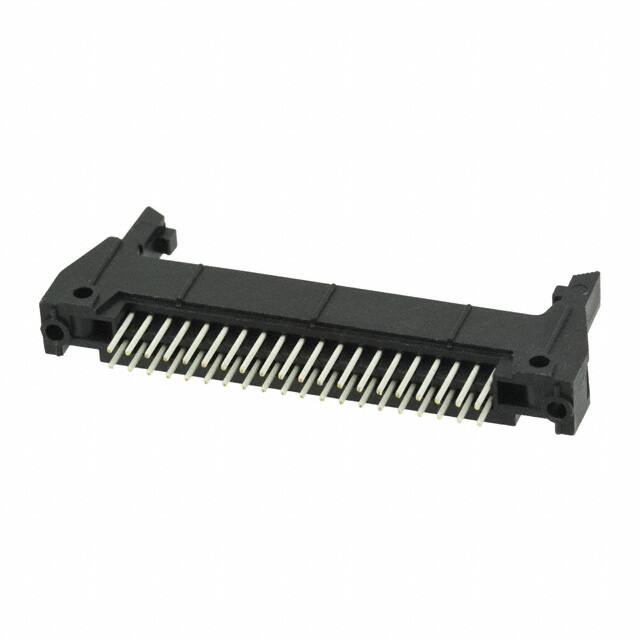

N3432-6303RB

Teknik Özellikler

Contact Finish Mating

Gold

Sıra Sayısı

2

Contact Finish Post

Tin

Insulation Resistance

1GOhm

Contact Materials

Copper Alloy

Seri

3000

Fabrika Tedarik Süresi

6 Weeks

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.240 6.10mm

Orientation

Straight

Insulation Color

Black

Housing Color

Black

Contact Length Post

0.155 3.94mm

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Contact Shape

Square

Current Rating Amps

1.75A

Gender

Male

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.680 17.27mm

Overall Contact Length

0.695 17.65mm

Depth

8.6mm

Row Spacing Mating

0.100 (2.54mm)

Montaj

Through Hole

Contact Finish Thickness Post

200.0μin 5.08μm

Contact Plating

Gold

Number Of Contacts

40

Terminal

Solder

Number Of Positions Loaded

All

Max Current Rating

2A

Fastening Type

Latch Lock/Eject Hooks, Long

Ambalaj

Bulk

Pitch

2.54mm

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Housing Material

Polyester

Flammability Rating

UL94 V-0

Contact Type

Male Pin

Yayın Yılı

2009

Uzunluk

70.23mm

Renk

Black
