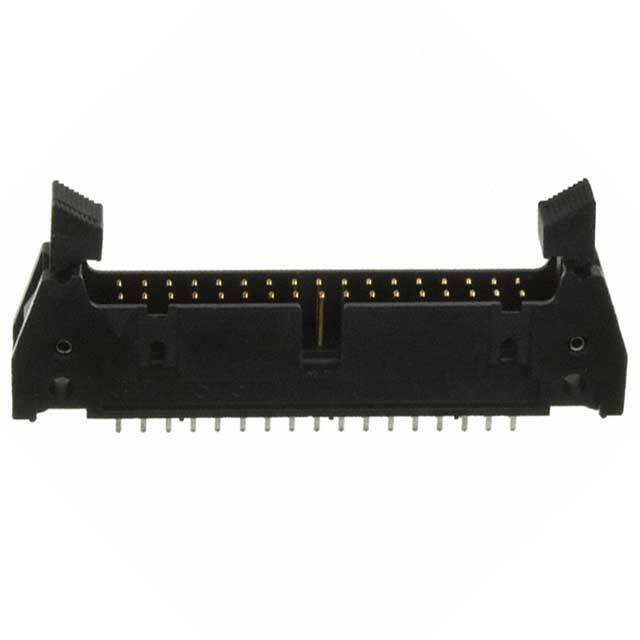

N3431-6202RB

Teknik Özellikler

Seri

3000

Fabrika Tedarik Süresi

6 Weeks

Contact Lengthmating

0.240 6.10mm

Shrouding

Shrouded - 4 Wall

Insulation Color

Black

Housing Color

Black

Orientation

Straight

Current Rating Amps

1.75A

Contact Shape

Square

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Contact Length Post

0.112 2.84mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Male

Overall Contact Length

0.652 16.56mm

Insulation Height

0.680 17.27mm

Contact Finish Thickness Post

200.0μin 5.08μm

Montaj

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Depth

8.6mm

Contact Resistance

20mOhm

Number Of Poles

34

Contact Finish Mating

Gold

Sıra Sayısı

2

Contact Finish Post

Tin

Voltage Rated Ac

350V

Pin Sayısı

34

Insulation Resistance

1GOhm

Contact Materials

Copper Alloy

Hole Diameter

890 μm

Working Voltage

350V

Connector Type

Header

Lead Pitch

2.54mm

Çalışma Sıcaklığı

-55°C~105°C

Reach Svhc

No SVHC

Pozisyon Sayısı

34

Style

Board to Board or Cable

Akım Değeri

1A

Voltage Rated Dc

350V

Contact Finish Thickness Mating

30.0μin 0.76μm
