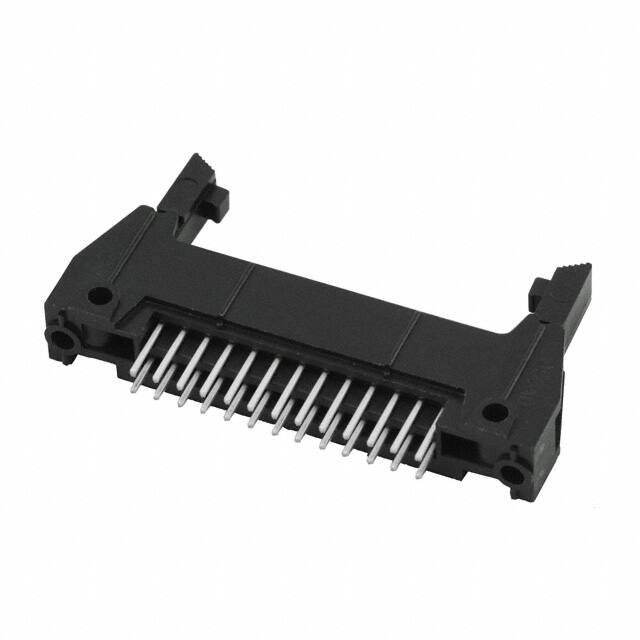

N3429-6302RB

Teknik Özellikler

Style

Board to Board or Cable

Akım Değeri

1A

Pozisyon Sayısı

26

Çalışma Sıcaklığı

-55°C~105°C

Reach Svhc

No SVHC

Connector Type

Header

Lead Pitch

2.54mm

Working Voltage

350V

Maks. Çalışma Sıcaklığı

105°C

Özellikler

Keying Slot, Mounting Flange

Parça Durumu

Active

Yükseklik

27.2mm

Min. Çalışma Sıcaklığı

-55°C

RoHS Durumu

RoHS Compliant

Contact Finish Thickness Mating

30.0μin 0.76μm

Voltage Rated Dc

350V

Ambalaj

Bulk

Fastening Type

Latch Lock/Eject Hooks, Long

Max Current Rating

2A

Number Of Positions Loaded

All

Contact Plating

Gold

Terminal

Solder

Number Of Contacts

26

Material Flammability Rating

UL94 V-0

Renk

Black

Contact Type

Male Pin

Uzunluk

52.45mm

Yayın Yılı

2016

Housing Material

Polychlorinated

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Pitch

2.54mm

Flammability Rating

UL94 V-0

Orientation

Straight

Housing Color

Black

Insulation Color

Black

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.240 6.10mm

Fabrika Tedarik Süresi

6 Weeks

Seri

3000

Depth

8.6mm
