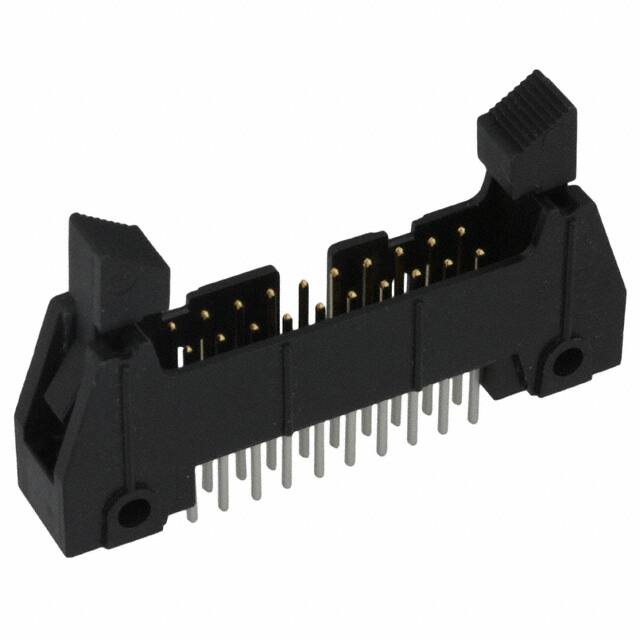

N3428-6202RB

Teknik Özellikler

Contact Finish Mating

Gold

Number Of Poles

20

Contact Resistance

20mOhm

Nominal Gerilim

1kV

Contact Finish Post

Tin

Sıra Sayısı

2

Pin Sayısı

20

Voltage Rated Ac

350V

Hole Diameter

890 μm

Contact Materials

Copper Alloy

Insulation Resistance

1GOhm

Fabrika Tedarik Süresi

6 Weeks

Lead Length

2.84mm

Contact Gender

Male

Seri

3000

Orientation

Straight

Housing Color

Black

Insulation Color

Black

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.240 6.10mm

Gender

Male

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.112 2.84mm

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm

Contact Shape

Square

Current Rating Amps

1.75A

Depth

8.6mm

Montaj

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

200.0μin 5.08μm

Insulation Height

0.680 17.27mm

Overall Contact Length

0.652 16.56mm

Number Of Positions Loaded

All

Contact Plating

Gold

Number Of Contacts

20

Terminal

Solder

Ambalaj

Bulk

Kurşunsuz

Lead Free

Max Current Rating

2A
