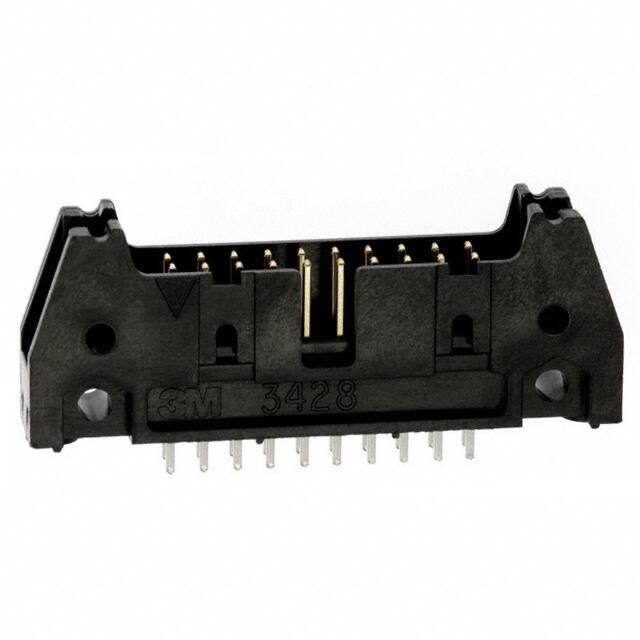

N3428-6002RB

Teknik Özellikler

Nominal Gerilim

1kV

Contact Finish Post

Tin

Sıra Sayısı

2

Contact Finish Mating

Gold

Contact Materials

Copper Alloy

Insulation Resistance

1GOhm

Housing Color

Black

Insulation Color

Black

Orientation

Straight

Contact Lengthmating

0.240 6.10mm

Shrouding

Shrouded - 4 Wall

Contact Gender

Male

Lead Length

2.84mm

Fabrika Tedarik Süresi

6 Weeks

Seri

3000

Montaj

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

200.0μin 5.08μm

Depth

8.6mm

Genişlik

8.3mm

Overall Contact Length

0.652 16.56mm

Insulation Height

0.680 17.27mm

Gender

Male

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Current Rating Amps

1.75A

Contact Length Post

0.112 2.84mm

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm

Kurşunsuz

Lead Free

Ambalaj

Bulk

Max Current Rating

2A

Fastening Type

Push-Pull

Onay Kuruluşu

UL

Number Of Positions Loaded

All

Number Of Contacts

20

Terminal

Solder

Contact Plating

Gold

Material Flammability Rating

UL94 V-0

Renk

Beige
