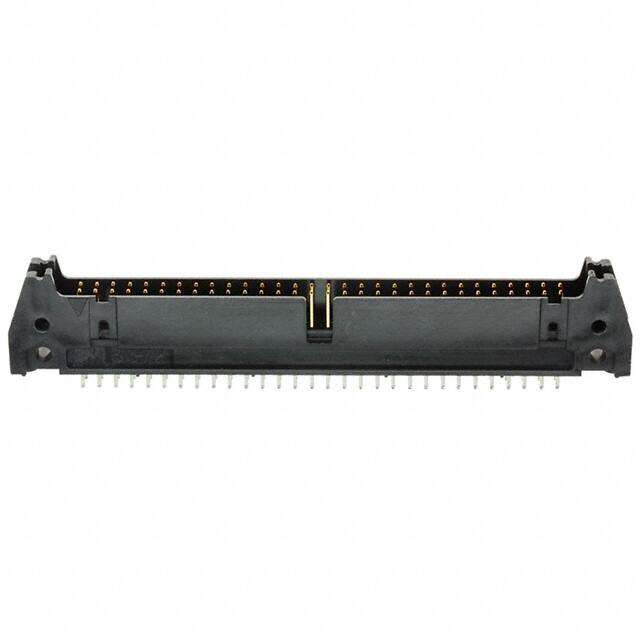

N3372-6002RB

Teknik Özellikler

Seri

3000

Fabrika Tedarik Süresi

6 Weeks

Contact Lengthmating

0.240 6.10mm

Shrouding

Shrouded - 4 Wall

Housing Color

Black

Insulation Color

Black

Orientation

Straight

Current Rating Amps

1.75A

Contact Shape

Square

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm

Contact Length Post

0.112 2.84mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Male

Overall Contact Length

0.652 16.56mm

Insulation Height

0.680 17.27mm

Contact Finish Thickness Post

200.0μin 5.08μm

Montaj

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Mating

Gold

Sıra Sayısı

2

Contact Finish Post

Tin

Nominal Gerilim

1kV

Insulation Resistance

1GOhm

Contact Materials

Copper Alloy

Connector Type

Header

Lead Pitch

2.54mm

Çalışma Sıcaklığı

-55°C~105°C

Pozisyon Sayısı

60

Style

Board to Board or Cable

Akım Değeri

1A

Contact Finish Thickness Mating

30.0μin 0.76μm

RoHS Durumu

RoHS Compliant

Özellikler

Keying Slot, Mounting Flange

Parça Durumu

Active

Terminal

Solder

Number Of Contacts

60

Contact Plating

Gold

Number Of Positions Loaded

All

Fastening Type

Push-Pull
