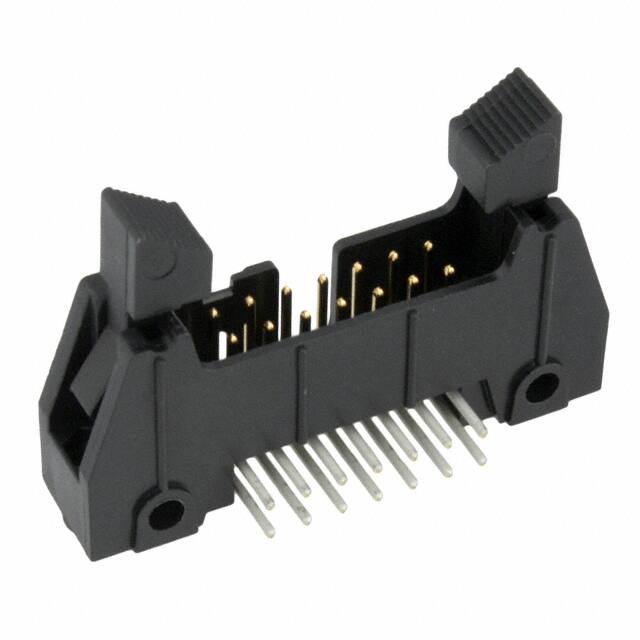

N3314-5202RB

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Min. Çalışma Sıcaklığı

-55°C

Contact Finish Thickness Mating

30.0μin 0.76μm

Voltage Rated Dc

350V

Maks. Çalışma Sıcaklığı

105°C

Parça Durumu

Active

Özellikler

Keying Slot, Mounting Flange

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-55°C~105°C

Lead Pitch

2.54mm

Connector Type

Header

Working Voltage

350V

Akım Değeri

1A

Style

Board to Cable/Wire

Pozisyon Sayısı

14

Contact Type

Male Pin

Yayın Yılı

2005

Uzunluk

37.21mm

Pitch

2.54mm

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Housing Material

Polyester

Material Flammability Rating

UL94 V-0

Renk

Black

Number Of Positions Loaded

All

Contact Plating

Gold

Number Of Contacts

14

Terminal

Solder

Ambalaj

Bulk

Kurşunsuz

Lead Free

Max Current Rating

2A

Fastening Type

Latch Lock/Eject Hooks, Short

Gender

Male

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.112 2.84mm

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole, Right Angle

Contact Shape

Square

Current Rating Amps

1.75A

Depth

24.6mm

Row Spacing Mating

0.100 (2.54mm)
