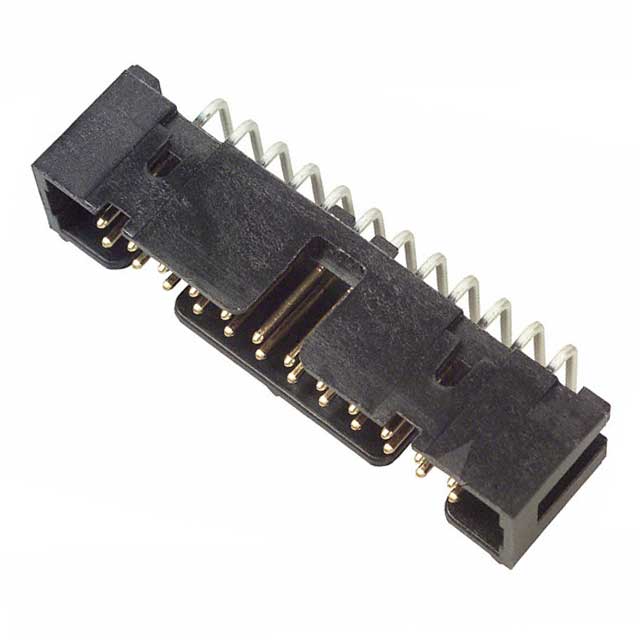

N2524-5002-UB

Teknik Özellikler

Contact Shape

Square

Contact Finish Mating

Gold

Contact Finish Post

Tin-Lead

Pitch Mating

0.100 2.54mm

Yayın Yılı

2009

Montaj Tipi

Through Hole, Right Angle

Contact Length Post

0.112 2.84mm

Ambalaj

Bulk

Connector Type

Header

Material Flammability Rating

UL94 V-0

Özellikler

Keying Slot

Fabrika Tedarik Süresi

6 Weeks

Contact Finish Thickness Mating

30.0μin 0.76μm

RoHS Durumu

Non-RoHS Compliant

Çalışma Sıcaklığı

-55°C~105°C

Row Spacing Mating

0.100 (2.54mm)

Current Rating Amps

1.75A

Contact Finish Thickness Post

200.0μin 5.08μm

Contact Materials

Copper Alloy

Insulation Height

0.338 8.59mm

Sıra Sayısı

2

Number Of Positions Loaded

All

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Lengthmating

0.243 6.17mm

Insulation Color

Black

Style

Board to Board or Cable

Parça Durumu

Last Time Buy

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Fastening Type

Push-Pull

Seri

2500

Contact Type

Male Pin

Shrouding

Shrouded - 4 Wall

Pozisyon Sayısı

24
