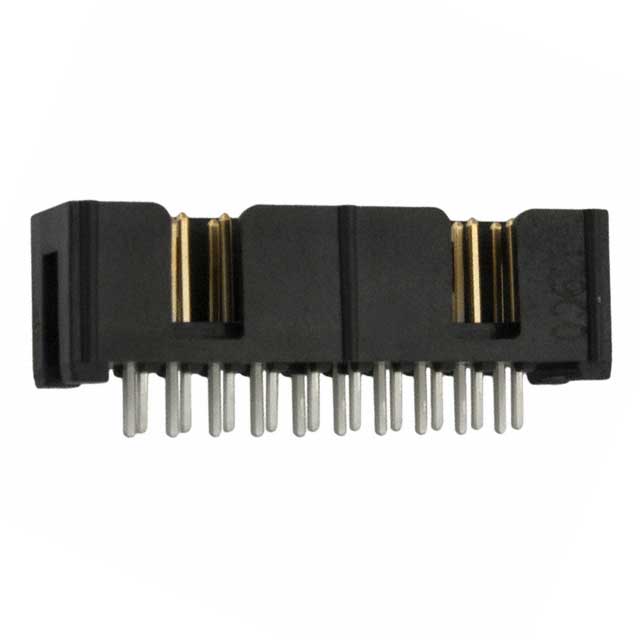

N2520-6002-RB

Teknik Özellikler

Contact Materials

Copper Alloy

Insulation Height

0.390 9.91mm

Contact Finish Thickness Post

200.0μin 5.08μm

Insulation Color

Black

Style

Board to Board or Cable

Number Of Positions Loaded

All

Sıra Sayısı

2

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Lengthmating

0.243 6.17mm

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pozisyon Sayısı

20

Fastening Type

Push-Pull

Terminal

Solder

Seri

2500

Contact Type

Male Pin

Shrouding

Shrouded - 4 Wall

Contact Finish Post

Tin

Pitch Mating

0.100 2.54mm

Yayın Yılı

2009

Contact Shape

Square

Contact Finish Mating

Gold

Ambalaj

Tray

Connector Type

Header

Material Flammability Rating

UL94 V-0

Özellikler

Keying Slot

Fabrika Tedarik Süresi

6 Weeks

Montaj Tipi

Through Hole

Contact Length Post

0.112 2.84mm

Çalışma Sıcaklığı

-55°C~105°C

Contact Finish Thickness Mating

30.0μin 0.76μm

RoHS Durumu

ROHS3 Compliant

Current Rating Amps

1.75A

Row Spacing Mating

0.100 (2.54mm)
