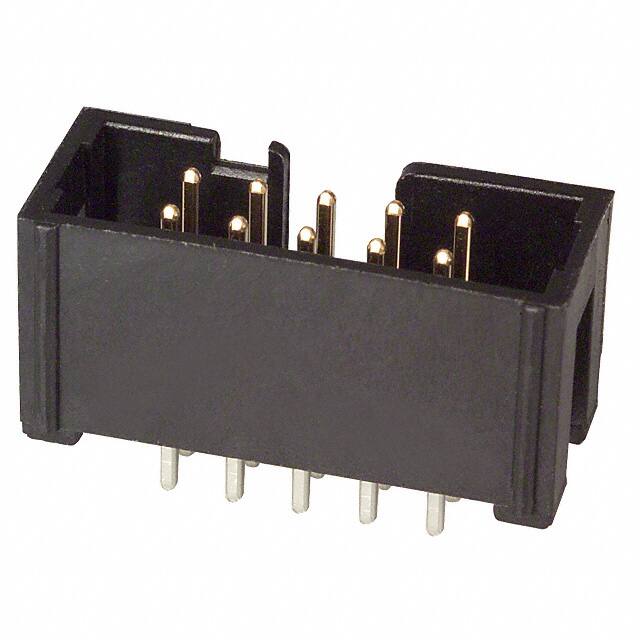

N2510-6002RB-WD

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~105°C

Contact Finish Thickness Mating

30.0μin 0.76μm

RoHS Durumu

ROHS3 Compliant

Uzunluk

20.02mm

Housing Color

Black

Row Spacing Mating

0.100 (2.54mm)

Yayın Yılı

2015

Contact Finish Post

Tin

Orientation

Straight

Pitch Mating

0.100 2.54mm

Contact Finish Mating

Gold

Contact Shape

Square

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

6 Weeks

Özellikler

Keying Slot

Ambalaj

Tape & Reel (TR)

Connector Type

Header

Contact Length Post

0.112 2.84mm

Montaj Tipi

Through Hole

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Depth

8.59mm

Pozisyon Sayısı

10

Contact Type

Male Pin

Shrouding

Shrouded - 4 Wall

Fastening Type

Push-Pull

Terminal

Solder

Seri

2500

Contact Materials

Copper Alloy

Insulation Height

0.390 9.91mm

Max Current Rating

1.75A

Contact Finish Thickness Post

200.0μin 5.08μm

Style

Board to Board or Cable

Montaj

Through Hole

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Lengthmating

0.243 6.17mm

Housing Material

Polychlorinated

Number Of Positions Loaded

All

Sıra Sayısı

2
