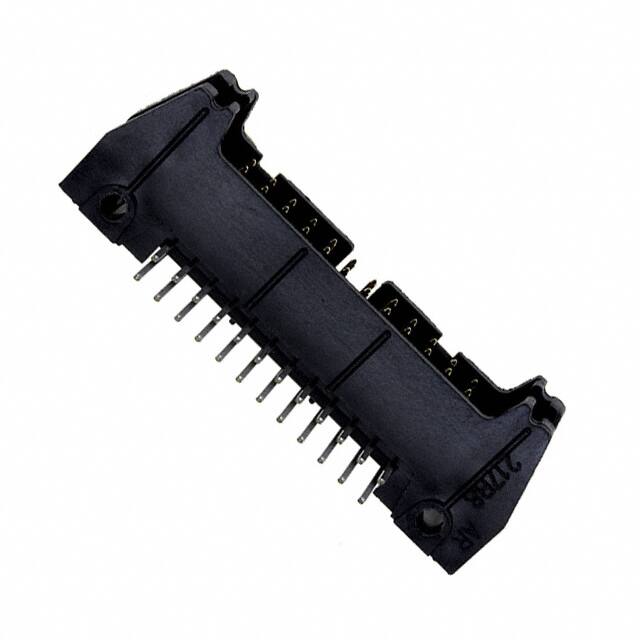

D3627-5002-AR

Teknik Özellikler

Contact Plating

Gold

Contact Type

Male Pin

Montaj

Through Hole

Material Flammability Rating

UL94 V-0

Contact Materials

Brass

Gender

Male

Terminal

Solder

Çalışma Sıcaklığı

-55°C~105°C

Contact Finish Thickness Mating

10.0μin 0.25μm

Özellikler

Keying Slot, Mounting Flange

Pitch

2.54mm

Number Of Positions Loaded

All

RoHS Durumu

RoHS Compliant

Row Spacing Mating

0.100 (2.54mm)

Pozisyon Sayısı

24

Yayın Yılı

2009

Insulation Height

0.340 8.64mm

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Current Rating Amps

1.75A

Fastening Type

Push-Pull

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.100 2.54mm

Contact Finish Thickness Post

39.4μin 1.00μm

Montaj Tipi

Through Hole, Right Angle

Fabrika Tedarik Süresi

6 Weeks

Contact Lengthmating

0.240 6.10mm

Ambalaj

Tray

Contact Finish Post

Tin

Sıra Sayısı

2

Connector Type

Header

Renk

Black

Seri

D3000

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Cable/Wire

Contact Shape

Square

Contact Finish Mating

Gold

Insulation Color

Black

Contact Length Post

0.112 2.84mm
