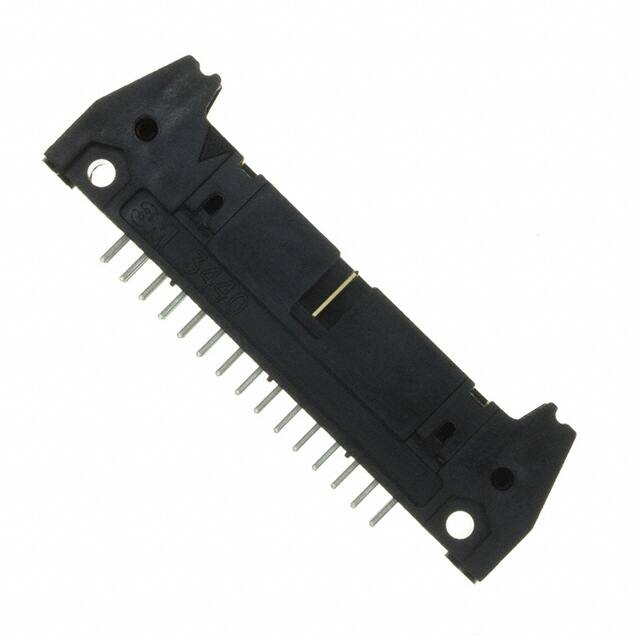

D3440-6002-AR

Teknik Özellikler

Overall Contact Length

0.652 16.56mm

Contact Length Post

0.112 2.84mm

Contact Finish Mating

Gold

Insulation Color

Black

Style

Board to Cable/Wire

Contact Shape

Square

Seri

D3000

Nem Hassasiyeti (MSL)

1 (Unlimited)

Renk

Black

Housing Material

Polyester

Akım Değeri

2A

Connector Type

Header

Sıra Sayısı

2

Fabrika Tedarik Süresi

6 Weeks

Contact Lengthmating

0.240 6.10mm

Ambalaj

Tray

Contact Finish Post

Tin

Montaj Tipi

Through Hole

Contact Finish Thickness Post

39.4μin 1.00μm

Pitch Mating

0.100 2.54mm

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Fastening Type

Push-Pull

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Current Rating Amps

1.75A

Insulation Height

0.680 17.27mm

Yayın Yılı

2009

Pozisyon Sayısı

30

Number Of Positions Loaded

All

RoHS Durumu

RoHS Compliant

Row Spacing Mating

0.100 (2.54mm)

Özellikler

Keying Slot, Mounting Flange

Pitch

2.54mm

Contact Finish Thickness Mating

10.0μin 0.25μm

Çalışma Sıcaklığı

-55°C~105°C

Terminal

Solder

Contact Gender

Male

Contact Materials

Brass

Montaj

Through Hole

Material Flammability Rating

UL94 V-0
