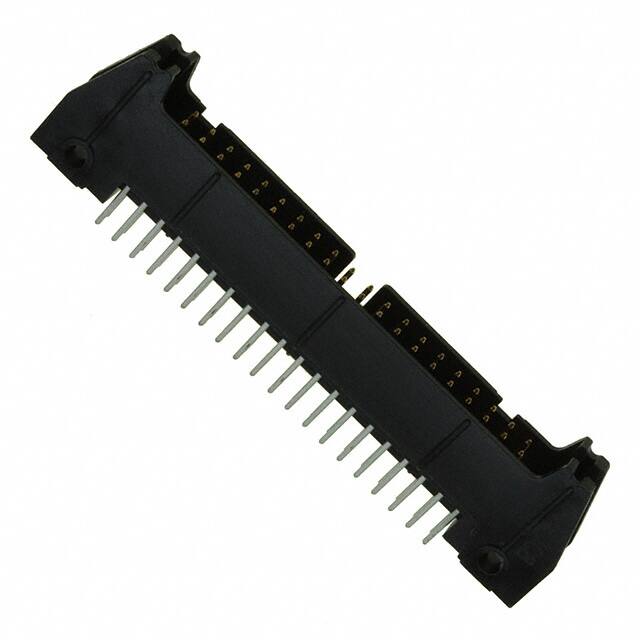

D3432-6002-AR

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~105°C

Contact Finish Thickness Mating

10.0μin 0.25μm

Terminal

Solder

Contact Gender

Male

Contact Materials

Brass

Contact Plating

Gold

Contact Type

Male Pin

Montaj

Through Hole

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Insulation Height

0.680 17.27mm

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Current Rating Amps

1.75A

Pozisyon Sayısı

40

Yayın Yılı

2009

Özellikler

Keying Slot, Mounting Flange

Pitch

2.54mm

Number Of Positions Loaded

All

Row Spacing Mating

0.100 (2.54mm)

RoHS Durumu

RoHS Compliant

Connector Type

Header

Sıra Sayısı

2

Akım Değeri

2A

Housing Material

Polyester

Montaj Tipi

Through Hole

Contact Lengthmating

0.240 6.10mm

Fabrika Tedarik Süresi

6 Weeks

Ambalaj

Tray

Contact Finish Post

Tin

Pitch Mating

0.100 2.54mm

Contact Finish Thickness Post

39.4μin 1.00μm

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Overall Contact Length

0.652 16.56mm

Contact Finish Mating

Gold

Insulation Color

Black

Contact Length Post

0.112 2.84mm

Style

Board to Cable/Wire

Contact Shape

Square

Renk

Black
