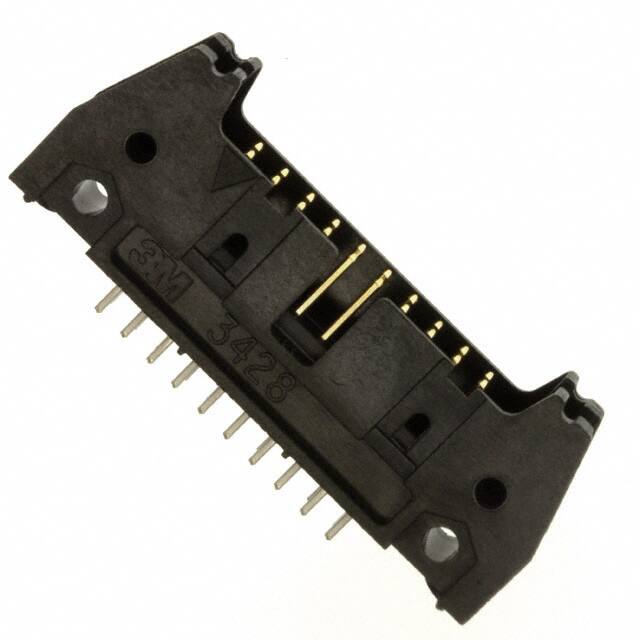

D3428-6002-AR

Teknik Özellikler

Yayın Yılı

2009

Pozisyon Sayısı

20

RoHS Durumu

RoHS Compliant

Row Spacing Mating

0.100 (2.54mm)

Number Of Positions Loaded

All

Özellikler

Keying Slot, Mounting Flange

Pitch

2.54mm

Fastening Type

Push-Pull

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Current Rating Amps

1.75A

Insulation Height

0.680 17.27mm

Gender

Male

Contact Materials

Brass

Contact Gender

Male

Material Flammability Rating

UL94 V-0

Montaj

Through Hole

Contact Type

Male Pin

Contact Plating

Gold

Contact Finish Thickness Mating

10.0μin 0.25μm

Çalışma Sıcaklığı

-55°C~105°C

Terminal

Solder

Style

Board to Cable/Wire

Contact Shape

Square

Lead Length

2.84mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

D3000

Renk

Black

Overall Contact Length

0.652 16.56mm

Contact Length Post

0.112 2.84mm

Insulation Color

Black

Contact Finish Mating

Gold

Contact Finish Thickness Post

39.4μin 1.00μm

Pitch Mating

0.100 2.54mm

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Housing Material

Polyester

Mating Post Length

6.1mm

Akım Değeri

2A

Connector Type

Header

Sıra Sayısı

2
