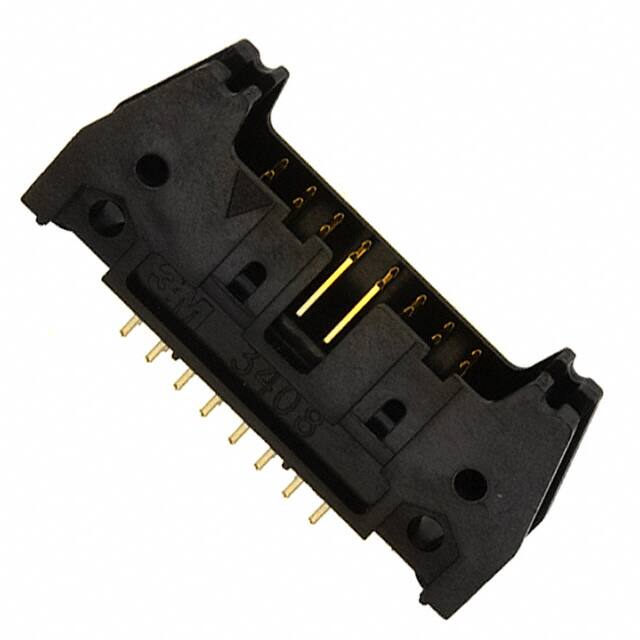

D3408-6002-AR

Teknik Özellikler

Number Of Positions Loaded

All

Row Spacing Mating

0.100 (2.54mm)

RoHS Durumu

RoHS Compliant

Pitch

2.54mm

Özellikler

Keying Slot, Mounting Flange

Yayın Yılı

2009

Pozisyon Sayısı

16

Current Rating Amps

1.75A

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Insulation Height

0.680 17.27mm

Fastening Type

Push-Pull

Montaj

Through Hole

Material Flammability Rating

UL94 V-0

Contact Plating

Gold

Contact Type

Male Pin

Gender

Male

Contact Gender

Male

Contact Materials

Brass

Terminal

Solder

Contact Finish Thickness Mating

10.0μin 0.25μm

Çalışma Sıcaklığı

-55°C~105°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

D3000

Renk

Black

Contact Shape

Square

Style

Board to Cable/Wire

Contact Length Post

0.112 2.84mm

Contact Finish Mating

Gold

Insulation Color

Black

Overall Contact Length

0.652 16.56mm

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Contact Finish Thickness Post

39.4μin 1.00μm

Pitch Mating

0.100 2.54mm

Contact Lengthmating

0.240 6.10mm

Fabrika Tedarik Süresi

6 Weeks

Ambalaj

Tray

Contact Finish Post

Tin

Montaj Tipi

Through Hole

Akım Değeri

2A
