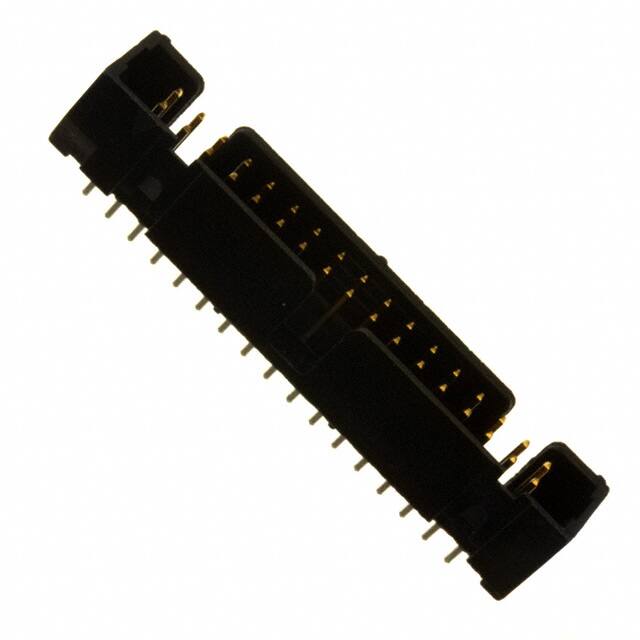

D2534-6002-AR

Teknik Özellikler

Contact Lengthmating

0.243 6.17mm

Pitch

2.54mm

Housing Material

Polyester

Parça Durumu

Active

Contact Type

Male Pin

Number Of Contacts

34

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.112 2.84mm

Fabrika Tedarik Süresi

6 Weeks

Yayın Yılı

1999

Özellikler

Keying Slot

RoHS Durumu

RoHS Compliant

Connector Type

Header

Seri

D2500

Montaj Tipi

Through Hole

Akım Değeri

2A

Insulation Height

0.253 6.43mm

Contact Finish Post

Tin

Terminal

Solder

Shrouding

Shrouded - 4 Wall

Fastening Type

Push-Pull

Contact Finish Thickness Post

39.4μin 1.00μm

Montaj

Through Hole

Contact Finish Mating

Gold

Style

Board to Cable/Wire

Contact Materials

Brass

Number Of Positions Loaded

All

Sıra Sayısı

2

Contact Shape

Square

Pin Sayısı

34

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

10.0μin 0.25μm

Overall Contact Length

0.492 12.50mm

Renk

Black

Pitch Mating

0.100 2.54mm

Insulation Color

Black

Contact Gender

Male

Manufacturer Package Identifier

TS-2244-C

Contact Plating

Gold

Row Spacing Mating

0.100 (2.54mm)
