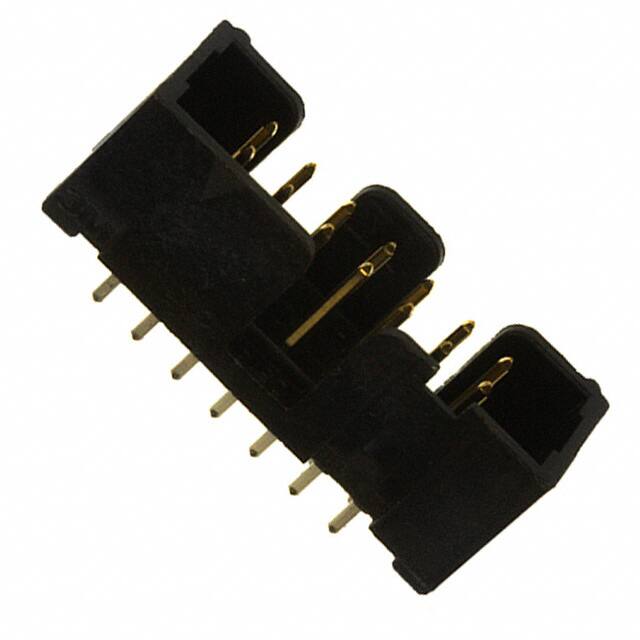

D2514-6002-AR

Teknik Özellikler

Depth

8.59mm

Housing Material

Polyester

Contact Type

Male Pin

Number Of Contacts

14

Contact Length Post

0.112 2.84mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Contact Lengthmating

0.243 6.17mm

Pitch

2.54mm

RoHS Durumu

RoHS Compliant

Özellikler

Keying Slot

Yayın Yılı

1999

Fabrika Tedarik Süresi

6 Weeks

Max Current Rating

2A

Nominal Gerilim

1kV

Insulation Height

0.253 6.43mm

Akım Değeri

2A

Seri

D2500

Montaj Tipi

Through Hole

Connector Type

Header

Style

Board to Cable/Wire

Number Of Positions Loaded

All

Contact Materials

Brass

Contact Finish Thickness Post

39.4μin 1.00μm

Montaj

Through Hole

Contact Finish Mating

Gold

Shrouding

Shrouded - 4 Wall

Fastening Type

Push-Pull

Orientation

Straight

Terminal

Solder

Contact Finish Post

Tin

Contact Shape

Square

Housing Color

Black

Sıra Sayısı

2

Uzunluk

25.1mm

Pitch Mating

0.100 2.54mm

Contact Gender

Male

Insulation Color

Black

Overall Contact Length

0.492 12.50mm

Renk

Black
