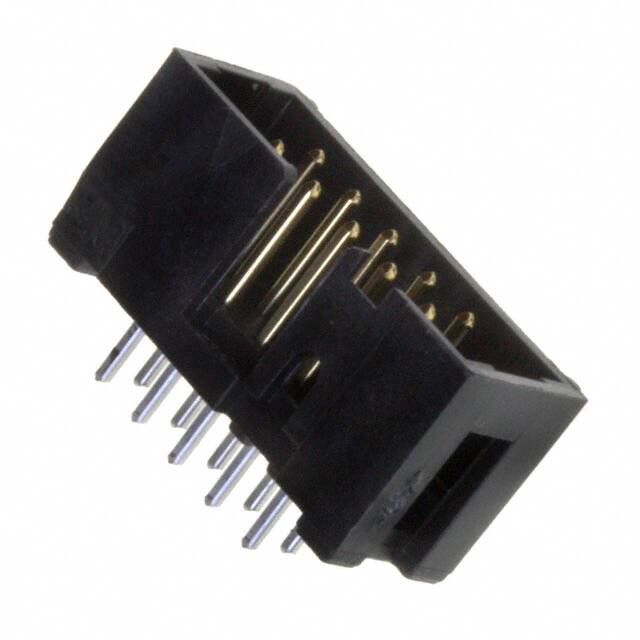

D2510-6002-AR

Teknik Özellikler

Contact Lengthmating

0.243 6.17mm

Pitch

2.54mm

Housing Material

Polyester

Parça Durumu

Active

Contact Length Post

0.112 2.84mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Contacts

10

Contact Type

Male Pin

Depth

8.59mm

Yükseklik

10.04mm

Max Current Rating

1.75A

Fabrika Tedarik Süresi

6 Weeks

Yayın Yılı

2008

Özellikler

Keying Slot

RoHS Durumu

RoHS Compliant

Connector Type

Header

Seri

D2500

Montaj Tipi

Through Hole

Akım Değeri

1.75A

Insulation Height

0.253 6.43mm

Nominal Gerilim

1kV

Contact Finish Post

Tin

Terminal

Solder

Shrouding

Shrouded - 4 Wall

Orientation

Straight

Fastening Type

Push-Pull

Contact Finish Thickness Post

39.4μin 1.00μm

Montaj

Through Hole

Contact Finish Mating

Gold

Style

Board to Cable/Wire

Contact Materials

Brass

Number Of Positions Loaded

All

Sıra Sayısı

2

Housing Color

Black

Contact Shape

Square

Mating Post Length

6.17mm

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

10.0μin 0.25μm

Overall Contact Length

0.492 12.50mm

Renk

Black
