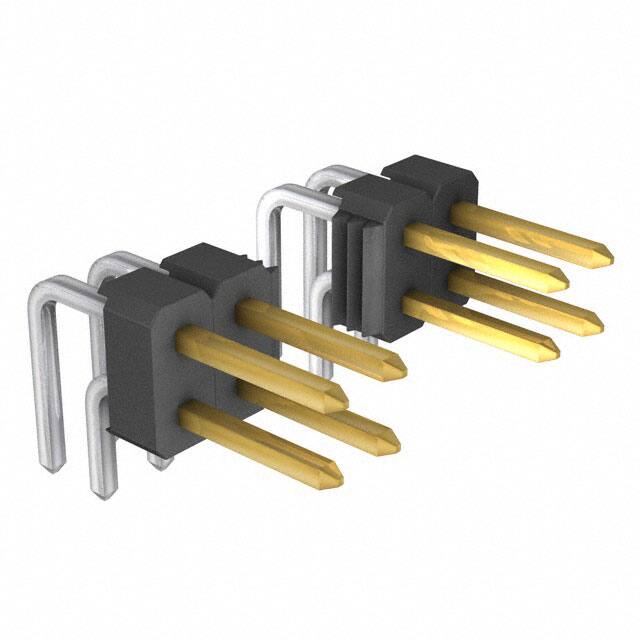

961210-5604-AR

Teknik Özellikler

Housing Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

Header

Max Current Rating

2A

Shrouding

Unshrouded

Housing Material

Thermoplastic

Parça Durumu

Obsolete

Ambalaj

Bulk

Reach Svhc

No SVHC

Contact Finish Post

Tin

Renk

Black

Contact Finish Thickness Mating

Flash

Min. Çalışma Sıcaklığı

-25°C

Pitch

2.54mm

Number Of Positions Loaded

All

Mating Post Length

6.1mm

Number Of Contacts

10

Montaj Tipi

Through Hole, Right Angle

Montaj

Through Hole

Style

Board to Board

Orientation

Right Angle

Fastening Type

Push-Pull

Lead Length

3.3mm

Contact Gender

Male

Gender

Male

Seri

961

Contact Finish Thickness Post

39.4μin 1.00μm

Row Spacing Mating

0.100 (2.54mm)

Pitch Mating

0.100 2.54mm

Contact Lengthmating

0.240 6.10mm

Sıra Sayısı

2

Contact Finish Mating

Gold

Insulation Color

Black

Current Rating Amps

2A

Insulation Materials

Thermoplastic

Contact Length Post

0.130 3.30mm

Depth

12.54mm

Pozisyon Sayısı

10

Maks. Çalışma Sıcaklığı

105°C

Contact Plating

Gold
