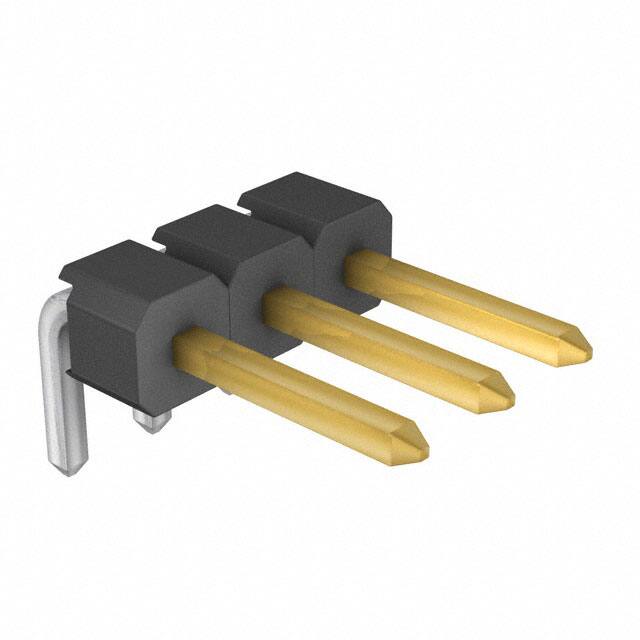

961103-5604-AR

Teknik Özellikler

Maks. Çalışma Sıcaklığı

105°C

Material Flammability Rating

UL94 V-0

Contact Plating

Gold

Akım Değeri

2A

Pozisyon Sayısı

3

Contact Shape

Square

Contact Materials

Copper Alloy

Contact Type

Male Pin

Uzunluk

7.62mm

Terminal

Solder

Fabrika Tedarik Süresi

9 Weeks

Yayın Yılı

2006

Insulation Height

0.098 2.50mm

Çalışma Sıcaklığı

-25°C~105°C

RoHS Durumu

RoHS Compliant

Pitch Mating

0.100 2.54mm

Contact Finish Mating

Gold

Sıra Sayısı

1

Contact Lengthmating

0.240 6.10mm

Insulation Color

Black

Contact Length Post

0.130 3.30mm

Depth

10mm

Current Rating Amps

2A

Insulation Materials

Thermoplastic

Number Of Contacts

3

Montaj Tipi

Through Hole, Right Angle

Montaj

Through Hole

Fastening Type

Push-Pull

Style

Board to Board

Orientation

Right Angle

Gender

Male

Contact Finish Thickness Post

39.4μin 1.00μm

Seri

961

Contact Gender

Male

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Current Rating

2A

Shrouding

Unshrouded

Connector Type

Header

Housing Color

Black

Row Spacing

2.54 mm
