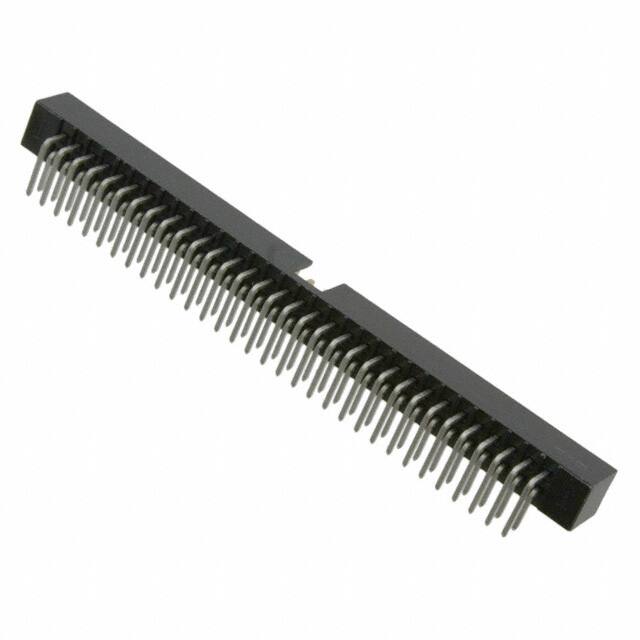

957264-5002-AR

Teknik Özellikler

Çalışma Sıcaklığı

-40°C~105°C

Insulation Height

0.217 5.51mm

Pozisyon Sayısı

64

Contact Shape

Square

Özellikler

Keying Slot

Contact Gender

Male

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Finish Mating

Gold

Yayın Yılı

2008

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

3 Weeks

Insulation Materials

Thermoplastic

Parça Durumu

Active

Montaj Tipi

Through Hole, Right Angle

Ambalaj

Tray

Pitch Mating

0.079 2.00mm

RoHS Durumu

RoHS Compliant

Contact Length Post

0.118 3.00mm

Contact Finish Thickness Mating

Flash

Current Rating Amps

1A

Fastening Type

Push-Pull

Number Of Positions Loaded

All

Montaj

Through Hole

Gender

Male

Contact Plating

Gold

Sıra Sayısı

2

Style

Board to Board

Mating Post Length

3.9mm

Housing Material

Thermoplastic

Seri

957

Insulation Color

Black

Lead Length

3mm

Row Spacing Mating

0.079 (2.00mm)

Contact Materials

Copper Alloy

Contact Type

Male Pin

Contact Finish Post

Tin

Pitch

2.0066mm

Renk

Black

Connector Type

Header

Terminal

Solder
