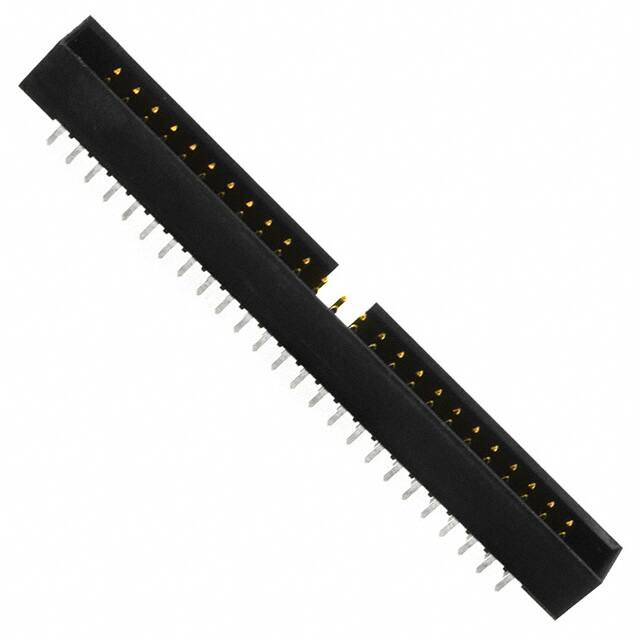

957250-6002-AR

Teknik Özellikler

Current Rating Amps

1A

Gender

Male

Insulation Materials

Thermoplastic

Montaj Tipi

Through Hole

Maks. Çalışma Sıcaklığı

105°C

RoHS Durumu

RoHS Compliant

Pitch Mating

0.079 2.00mm

Number Of Contacts

50

Contact Finish Thickness Mating

Flash

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Finish Mating

Gold

Yayın Yılı

2009

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-40°C~105°C

Pozisyon Sayısı

50

Özellikler

Keying Slot

Connector Type

Header

Terminal

Solder

Shrouding

Shrouded - 4 Wall

Weight

759.76722g

Contact Materials

Copper Alloy

Contact Type

Male Pin

Renk

Black

Contact Finish Post

Tin

Row Spacing Mating

0.079 (2.00mm)

Orientation

Straight

Max Current Rating

1A

Housing Material

Thermoplastic

Fastening Type

Push-Pull

Number Of Positions Loaded

All

Montaj

Through Hole

Contact Plating

Gold

Akım Değeri

1A

Parça Durumu

Active

Ambalaj

Tray

Contact Length Post

0.118 3.00mm

Fabrika Tedarik Süresi

8 Weeks

Insulation Height

0.220 5.60mm

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)
