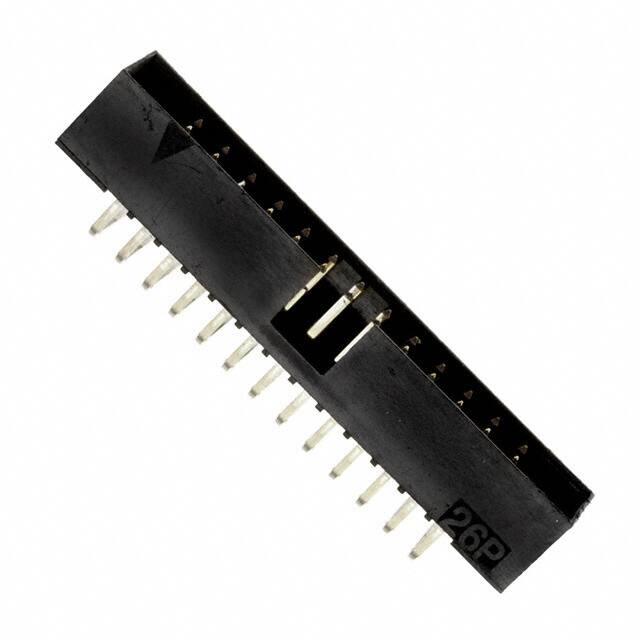

957226-5002-AR

Teknik Özellikler

Yayın Yılı

2008

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Finish Mating

Gold

Özellikler

Keying Slot

Pozisyon Sayısı

26

Çalışma Sıcaklığı

-40°C~105°C

Gender

Male

Current Rating Amps

1A

Contact Finish Thickness Mating

Flash

RoHS Durumu

RoHS Compliant

Pitch Mating

0.079 2.00mm

Number Of Contacts

26

Montaj Tipi

Through Hole, Right Angle

Maks. Çalışma Sıcaklığı

105°C

Insulation Materials

Thermoplastic

Row Spacing Mating

0.079 (2.00mm)

Lead Length

3mm

Mating Post Length

3.9mm

Housing Material

Thermoplastic

Max Current Rating

1A

Orientation

Right Angle

Terminal

Solder

Shrouding

Shrouded - 4 Wall

Connector Type

Header

Renk

Black

Contact Finish Post

Tin

Contact Type

Male Pin

Contact Materials

Copper Alloy

Fabrika Tedarik Süresi

3 Weeks

Contact Gender

Male

Contact Shape

Square

Insulation Height

0.217 5.51mm

Akım Değeri

1A

Contact Plating

Gold

Montaj

Through Hole

Number Of Positions Loaded

All

Fastening Type

Push-Pull

Contact Length Post

0.118 3.00mm

Ambalaj

Tray
