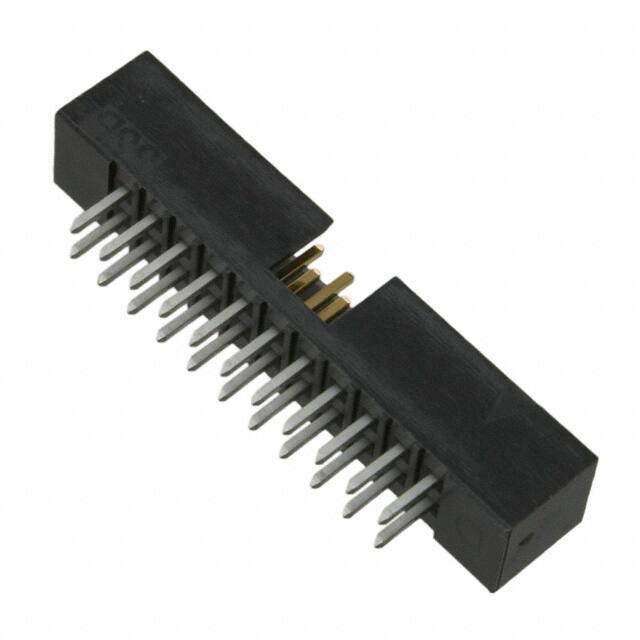

957222-6002-AR

Teknik Özellikler

Fabrika Tedarik Süresi

3 Weeks

Material Flammability Rating

UL94 V-0

Yayın Yılı

2009

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Finish Mating

Gold

Özellikler

Keying Slot

Contact Shape

Square

Insulation Height

0.220 5.60mm

Pozisyon Sayısı

22

Çalışma Sıcaklığı

-40°C~105°C

Contact Plating

Gold

Gender

Male

Montaj

Through Hole

Number Of Positions Loaded

All

Fastening Type

Push-Pull

Current Rating Amps

1A

Contact Length Post

0.118 3.00mm

Contact Finish Thickness Mating

Flash

RoHS Durumu

RoHS Compliant

Pitch Mating

0.079 2.00mm

Montaj Tipi

Through Hole

Ambalaj

Tray

Insulation Materials

Thermoplastic

Parça Durumu

Active

Row Spacing Mating

0.079 (2.00mm)

Seri

957

Insulation Color

Black

Style

Board to Board

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Shrouding

Shrouded - 4 Wall

Connector Type

Header

Renk

Black

Pitch

2.0066mm

Contact Finish Post

Tin

Contact Type

Male Pin

Contact Materials

Copper Alloy
