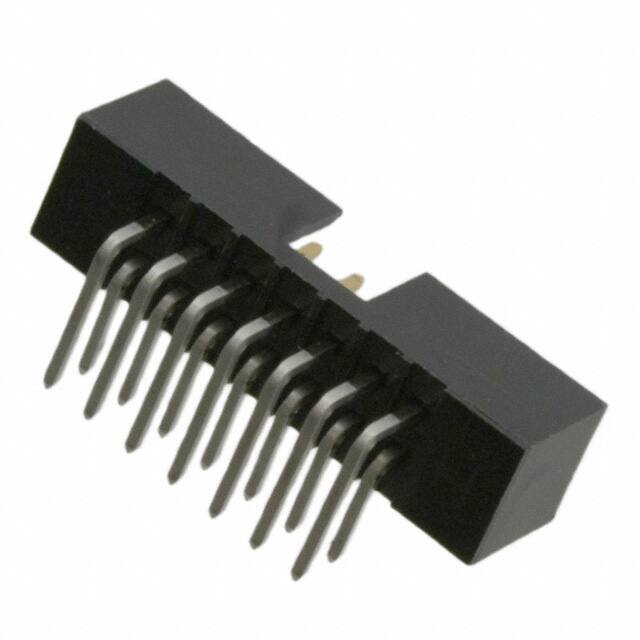

957214-5002-AR

Teknik Özellikler

Row Spacing Mating

0.079 (2.00mm)

Insulation Color

Black

Seri

957

Sıra Sayısı

2

Style

Board to Board

Connector Type

Header

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Shrouding

Shrouded - 4 Wall

Contact Type

Male Pin

Contact Materials

Copper Alloy

Contact Finish Post

Tin

Pitch

2.0066mm

Renk

Black

Yayın Yılı

2008

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

5 Weeks

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Finish Mating

Gold

Pozisyon Sayısı

14

Insulation Height

0.217 5.51mm

Çalışma Sıcaklığı

-40°C~105°C

Özellikler

Keying Slot

Contact Shape

Square

Fastening Type

Push-Pull

Number Of Positions Loaded

All

Montaj

Through Hole

Current Rating Amps

1A

Gender

Male

Contact Plating

Gold

Ambalaj

Tray

Montaj Tipi

Through Hole, Right Angle

Parça Durumu

Active

Insulation Materials

Thermoplastic

Contact Finish Thickness Mating

Flash

Contact Length Post

0.118 3.00mm

Number Of Contacts

14

Pitch Mating

0.079 2.00mm

RoHS Durumu

RoHS Compliant
