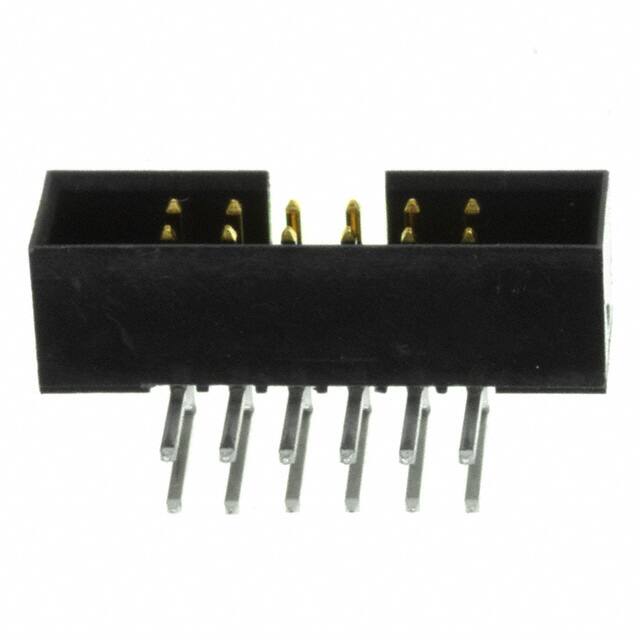

957212-5002-AR

Teknik Özellikler

Sıra Sayısı

2

Style

Board to Board

Housing Material

Thermoplastic

Reach Svhc

Unknown

Row Spacing Mating

0.079 (2.00mm)

Seri

957

Insulation Color

Black

Contact Type

Male Pin

Contact Materials

Copper Alloy

Renk

Black

Pitch

2.0066mm

Contact Finish Post

Tin

Connector Type

Header

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Shrouding

Shrouded - 4 Wall

Insulation Height

0.217 5.51mm

Pozisyon Sayısı

12

Çalışma Sıcaklığı

-40°C~105°C

Contact Gender

Male

Özellikler

Keying Slot

Contact Shape

Square

Yayın Yılı

2009

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

8 Weeks

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Finish Mating

Gold

Montaj Tipi

Through Hole, Right Angle

Ambalaj

Tray

Insulation Materials

Thermoplastic

Parça Durumu

Active

Contact Length Post

0.118 3.00mm

Contact Finish Thickness Mating

Flash

Number Of Contacts

12

Pitch Mating

0.079 2.00mm

RoHS Durumu

RoHS Compliant

Montaj

Through Hole

Number Of Positions Loaded

All

Fastening Type

Push-Pull

Current Rating Amps

1A
