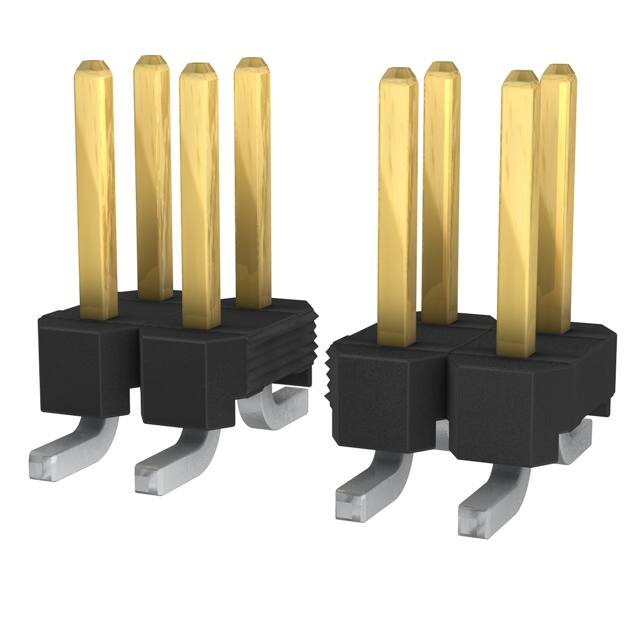

951280-2520-AR-TP

Teknik Özellikler

Akım Değeri

1A

Shrouding

Unshrouded

Yayın Yılı

2009

Fabrika Tedarik Süresi

3 Weeks

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Terminal

Solder

Sıra Sayısı

2

Number Of Contacts

80

Number Of Positions Loaded

All

Ambalaj

Tube

Pozisyon Sayısı

80

Pitch

2.0066mm

Style

Board to Board

Row Spacing Mating

0.079 (2.00mm)

Contact Shape

Square

Renk

Black

Contact Finish Thickness Mating

Flash

Contact Lengthmating

0.157 4.00mm

Housing Material

Thermoplastic

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Çalışma Sıcaklığı

-25°C~105°C

Pitch Mating

0.079 2.00mm

Contact Finish Post

Tin

Contact Materials

Copper Alloy

Contact Finish Mating

Gold

Contact Finish Thickness Post

39.4μin 1.00μm

Current Rating Amps

1A

Seri

951

Insulation Height

0.060 1.52mm

Insulation Materials

Thermoplastic

Montaj Tipi

Surface Mount

Nominal Gerilim

1kV

Insulation Color

Black

Contact Plating

Gold

Contact Type

Male Pin

Connector Type

Header

Contact Gender

Male

RoHS Durumu

RoHS Compliant
