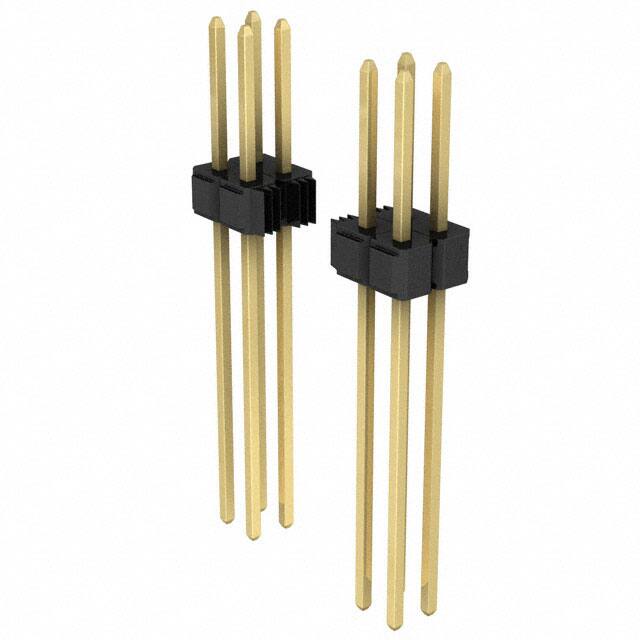

929715-06-36-I

Teknik Özellikler

Fabrika Tedarik Süresi

4 Weeks

Parça Durumu

Active

Flammability Rating

UL94 V-0

Material Flammability Rating

UL94 V-0

Gender

Male

Contact Type

Male Pin

Connector Type

Header

Contact Lengthmating

0.318 8.08mm

Insulation Height

0.100 2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Pitch

2.54mm

Contact Finish Post

Gold

RoHS Durumu

RoHS Compliant

Yayın Yılı

2008

Contact Shape

Square

Overall Contact Length

1.128 28.65mm

Seri

929

Sıra Sayısı

2

Ambalaj

Bulk

Pitch Mating

0.100 2.54mm

Contact Finish Thickness Post

10.0μin 0.25μm

Contact Materials

Copper Alloy

Current Rating Amps

2.5A

Contact Plating

Gold

Onay Kuruluşu

UL

Row Spacing Mating

0.100 (2.54mm)

Montaj

Flanges, Through Hole

Fastening Type

Push-Pull

Insulation Color

Black

Shrouding

Unshrouded

Contact Finish Mating

Gold

Style

Board to Board

Çalışma Sıcaklığı

-40°C~105°C

Montaj Tipi

Through Hole

Contact Length Post

0.710 18.03mm

Number Of Positions Loaded

All

Akım Değeri

2.5A

Orientation

Straight

Number Of Contacts

36
