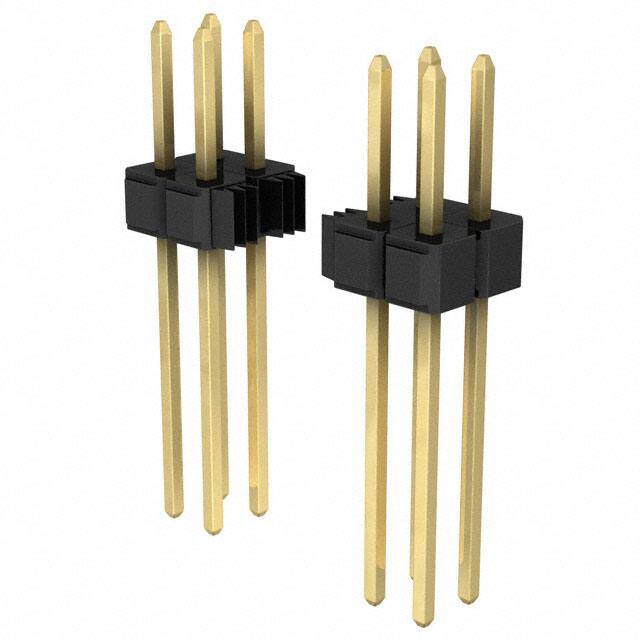

929665-04-36-I

Teknik Özellikler

Fastening Type

Push-Pull

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

10.0μin 0.25μm

Kurşunsuz

Lead Free

Shrouding

Unshrouded

Orientation

Straight

Housing Color

Black

Style

Board to Board

Pozisyon Sayısı

72

Nominal Gerilim

1.5kV

Renk

Black

Terminal

Solder

Connector Type

Header

Gender

Male

Material Flammability Rating

UL94 V-0

Flammability Rating

UL94 V-0

Insulation Height

0.100 2.54mm

Pitch

2.54mm

Insulation Materials

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Contact Shape

Square

Overall Contact Length

0.845 21.46mm

Seri

929

Yayın Yılı

2008

Lead Pitch

2.54mm

Montaj

Flanges, Through Hole

Onay Kuruluşu

UL

Contact Plating

Gold

Current Rating Amps

2.5A

Contact Materials

Copper Alloy

Pitch Mating

0.100 2.54mm

Contact Finish Mating

Gold

Insulation Color

Black

Number Of Contacts

36

Contact Gender

Male

Number Of Positions Loaded

All

Akım Değeri

2.5A

Contact Length Post

0.510 12.95mm

Montaj Tipi

Through Hole
