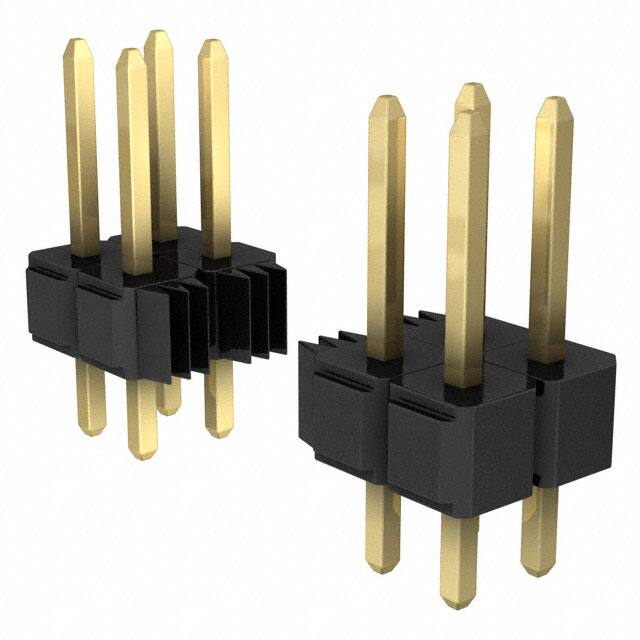

929665-01-08-I

Teknik Özellikler

Insulation Height

0.100 2.54mm

Contact Lengthmating

0.235 5.97mm

Parça Durumu

Active

Fabrika Tedarik Süresi

51 Weeks

Lead Length

2.79mm

Contact Type

Male Pin

Connector Type

Header

Material Flammability Rating

UL94 V-0

Yayın Yılı

2008

Ambalaj

Bulk

Sıra Sayısı

2

Contact Shape

Square

Overall Contact Length

0.445 11.30mm

Seri

929

Pitch

2.54mm

Contact Finish Post

Gold

Insulation Materials

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Shrouding

Unshrouded

Insulation Color

Black

Contact Finish Mating

Gold

Current Rating Amps

2.5A

Contact Materials

Copper Alloy

Contact Finish Thickness Post

10.0μin 0.25μm

Pitch Mating

0.100 2.54mm

Fastening Type

Push-Pull

Montaj

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Contact Plating

Gold

Renk

Black

Terminal

Solder

Mating Post Length

5.97mm

Housing Material

PBT

Contact Finish Thickness Mating

10.0μin 0.25μm

Pozisyon Sayısı

16

Nominal Gerilim

1.5kV

Montaj Tipi

Through Hole

Style

Board to Board

Çalışma Sıcaklığı

-40°C~105°C
