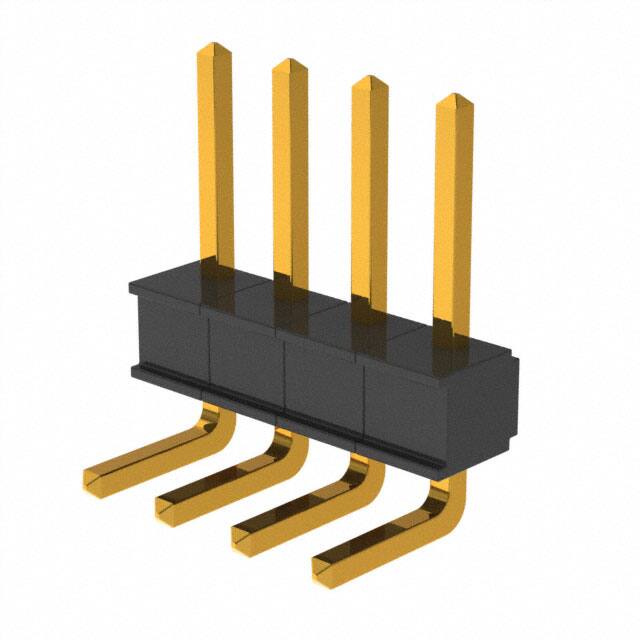

929648-01-04-EU

Teknik Özellikler

Pitch

2.54mm

Contact Finish Post

Gold

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT)

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Yayın Yılı

2008

Ambalaj

Bulk

Sıra Sayısı

1

Seri

929

Contact Shape

Square

Parça Durumu

Active

Lead Length

2.79mm

Fabrika Tedarik Süresi

3 Weeks

Connector Type

Header, Breakaway

Contact Type

Male Pin

Gender

Male

Material Flammability Rating

UL94 V-0

Insulation Height

0.115 2.92mm

Contact Lengthmating

0.235 5.97mm

Montaj Tipi

Through Hole, Right Angle

Çalışma Sıcaklığı

-40°C~105°C

Style

Board to Board

Akım Değeri

2.5A

Number Of Positions Loaded

All

Contact Gender

Male

Contact Length Post

0.110 2.79mm

Renk

Black

Terminal

Solder

Mating Post Length

5.97mm

Housing Material

Polyester

Pozisyon Sayısı

4

Contact Finish Thickness Mating

10.0μin 0.25μm

Nominal Gerilim

1.5kV

Current Rating Amps

2.5A

Contact Finish Thickness Post

10.0μin 0.25μm

Contact Materials

Copper Alloy

Pitch Mating

0.100 2.54mm

Montaj

Through Hole

Fastening Type

Push-Pull

Contact Plating

Gold
