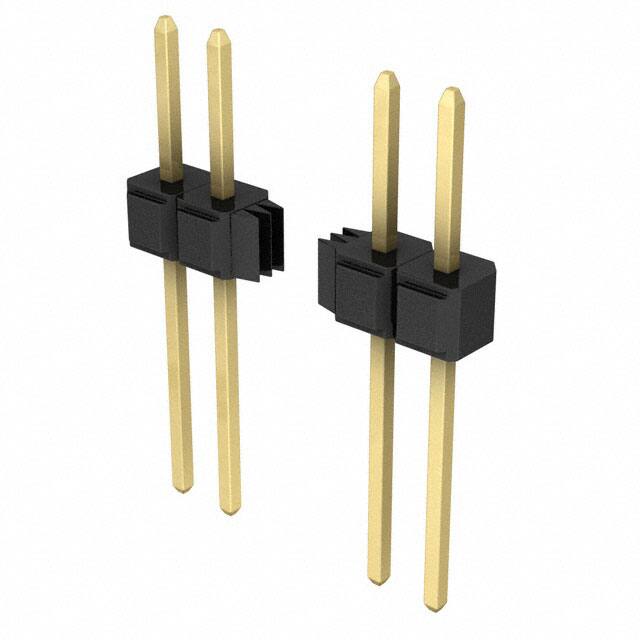

929647-03-36-I

Teknik Özellikler

Housing Color

Black

Style

Board to Board

Orientation

Straight

Renk

Black

Terminal

Solder

Pozisyon Sayısı

36

Nominal Gerilim

1.5kV

Contact Finish Thickness Post

10.0μin 0.25μm

Fastening Type

Push-Pull

Shrouding

Unshrouded

Kurşunsuz

Lead Free

Pitch

2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Yayın Yılı

2008

Lead Pitch

2.54mm

Sıra Sayısı

1

Contact Shape

Square

Overall Contact Length

0.745 18.92mm

Seri

929

Maks. Çalışma Sıcaklığı

105°C

Flammability Rating

UL94 V-0

Connector Type

Header, Breakaway

Material Flammability Rating

UL94 V-0

Gender

Male

Insulation Height

0.100 2.54mm

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-40°C~105°C

Number Of Contacts

36

Contact Length Post

0.410 10.41mm

Contact Gender

Male

Number Of Positions Loaded

All

Akım Değeri

2.5A

Contact Finish Thickness Mating

10.0μin 0.25μm

Housing Material

PBT

Current Rating Amps

2.5A

Pitch Mating

0.100 2.54mm

Contact Materials

Copper Alloy

Montaj

Flanges, Through Hole

Contact Plating

Gold
