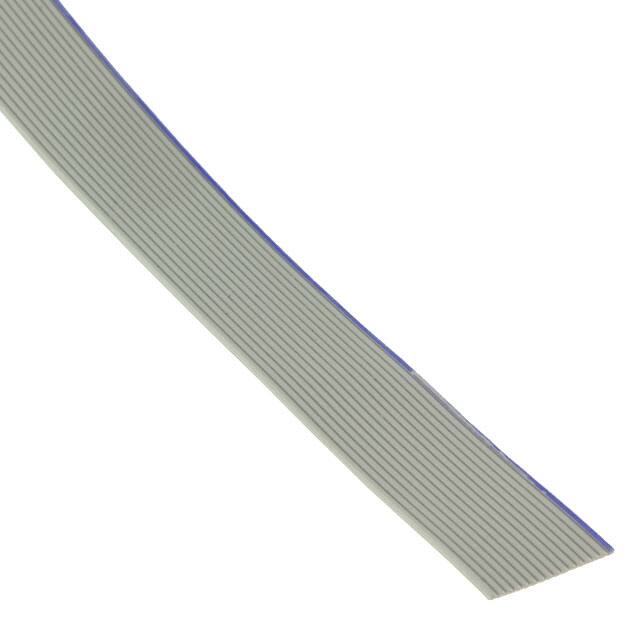

3749/16

Teknik Özellikler

Nominal Gerilim

150V

RoHS Durumu

RoHS Compliant

Jacket Color

Gray

Kılıf / Paket

100

Conductor Strand

Solid

First Conductor Mark

Blue

Propagation Delay

1.48 ns

Empedans

90Ohm

Ribbon Width

0.402 10.20mm

Insulation Materials

TPE

Wire Gauge

30 AWG

Number Of Conductors

154 (77 Pair Twisted)

Pitch

0.025 0.64mm

Ratings

UL Style 20297

Fabrika Tedarik Süresi

5 Weeks

Insulation Resistance

10GOhm

Özellikler

Zippable

Voltage Rated Dc

50V

Renk

Grey

Wirecable Type

Flat Flex

Shielding

Unshielded

Montaj

Cable

Min. Çalışma Sıcaklığı

-40°C

Endüktans

130 nH

Parça Durumu

Active

Cable Types

Flat Cable

Yayın Yılı

2013

Number Of Cores

16

Maks. Çalışma Sıcaklığı

105°C

Conductor Material

Copper, Tinned

Weight

3.175147kg

Ribbon Thickness

0.025 0.64mm

Wirecable Gauge

30 AWG

Gerilim

150V

Uzunluk

100.0' 30.48m

Jacket Insulation Material

Thermoplastic Elastomer (TPE)

Kapasitans

16.5pF

Nem Hassasiyeti (MSL)

Not Applicable

Çalışma Sıcaklığı

-40°C~105°C

Reach Svhc

Unknown
